1SAJ929500R0310

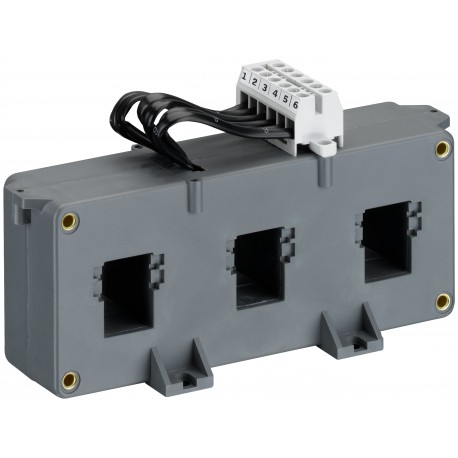

1SAJ929500R0310 ABB 3-Phase Current Transformer CT4L310R/4 Rated nominal current range 185 … 310A
$0.00USD
3791 in stock
Key Specifications
:IEC/EN 60947-4-1
ETIM 6:EC002048 - Current transformer
ETIM 7:EC002048 - Current transformer
ETIM 8:EC002048 - Current transformer
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| IEC/EN 60947-4-1 | |
| ETIM 6 | EC002048 - Current transformer |
| ETIM 7 | EC002048 - Current transformer |
| ETIM 8 | EC002048 - Current transformer |
| ETIM 9 | EC002048 - Current transformer |
| UNSPSC | 39121032 |
| eClass | V11.0 : 27210902 |
| Standards | IEC/EN 60947-1 |
| RoHS Status | Following EU Directive 2011/65/EU |
| Feature Name | Feature Value |
| Suitable For | UMC100-FBP |
| Terminal Type | Screw Terminals |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| CB Certificate | DK-41658-A1-UL |
| GL Certificate | 1SAA962005-0401 |
| WEEE B2C / B2B | Business To Business |
| ABS Certificate | 9AKK106930A7739 |
| DNV Certificate | TAA000015X-revision4 |
| ATEX Certificate | Not available |
| Model (EF000010) | 3-phase current converter set |
| RoHS Information | 1SVD981040-00 |
| Product Main Type | CT |
| Product Net Width | 192 mm |
| REACH Declaration | 1SAA983001-4501 |
| Product Net Height | 98 mm |
| Product Net Weight | 1.442 kg |
| Connecting Capacity | 1x 1.5-6 mm² |
| Package Level 1 EAN | 4013614482120 |
| Customs Tariff Number | 85043129 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 199 mm |
| Wire Stripping Length | 7 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 195 mm |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Instructions and Manuals | 1SAC200366M0001 |
| Recommended Screw Driver | Pozidriv 1 |
| Snap mounting (EF007462) | No |
| Connecting Capacity UL/CSA | Flexible with Ferrule 1x 16-10 AWG |
| Object Classification Code | T |
| Product Net Depth / Length | 43 mm |
| Suitable for Product Class | Universal Motor Controllers |
| With copper rail (EF007380) | Yes |
| Package Level 1 Gross Weight | 1.45 kg |
| Declaration of Conformity - CE | 1SVD981040-00 |
| Package Level 1 Depth / Length | 140 mm |
| Rated primary current (EF007405) | 310 A |
| Data Sheet, Technical Information | 2CDC135027D0201 |
| IDEA Granular Category Code (IGCC) | 4183 >> Current transformer |
| Rated secondary current (EF007471) | 4 A |
| With contact protection (EF008186) | No |
| Number of primary inputs (EF006947) | 0 |
| Overcurrent limiting factor (EF007511) | FS 10 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
Product Description
Current transformer 180... 310 BC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
