1SAJ650000R0100

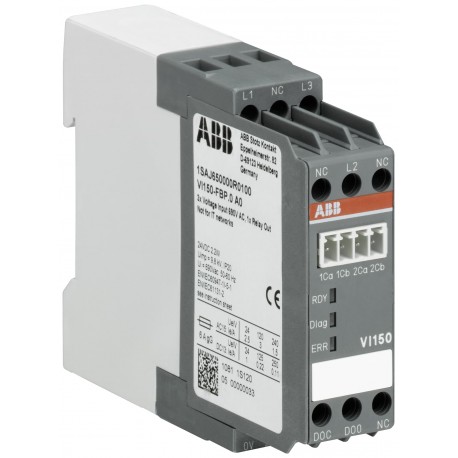

1SAJ650000R0100 ABB VI150-FBP Voltage-Module for UMC100 Use in grounded networks, Ue 150-690V AC
$0.00USD
4601 in stock
Key Specifications
:TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
SCIP:181f56a7-811a-4888-ad71-deb584201f64 Germany (DE)
ETIM 6:EC002613 - Extension module for motor management device
ETIM 7:EC002613 - Extension module for motor management device
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| SCIP | 181f56a7-811a-4888-ad71-deb584201f64 Germany (DE) |
| ETIM 6 | EC002613 - Extension module for motor management device |
| ETIM 7 | EC002613 - Extension module for motor management device |
| ETIM 8 | EC002613 - Extension module for motor management device |
| ETIM 9 | EC002613 - Extension module for motor management device |
| UNSPSC | 39121552 |
| eClass | V11.0 : 27370805 |
| Standards | CAN/CSA C22.2 No.14 |
| Power Loss | Approximately 0.6 W |
| RoHS Status | Following EU Directive 2011/65/EU |
| Suitable For | UMC100-FBP |
| Terminal Type | Screw Terminals |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| GL Certificate | 1SAA962005-0401 |
| WEEE B2C / B2B | Business To Business |
| ABS Certificate | 9AKK106930A7739 |
| DNV Certificate | DNV_E-13261 |
| Number of Poles | 3 |
| ATEX Certificate | Not available |
| Pollution Degree | 3 |
| RoHS Information | 1SVD981001-4401 |
| Mounting Position | Any |
| Product Main Type | VI1 |
| Product Net Width | 22.5 mm |
| REACH Declaration | 1SAA983001-4501 |
| Tightening Torque | Auxiliary Circuit 0.22 N·m |
| cULus Certificate | cULus_20220318_E48139 |
| DNV GL Certificate | TAA000015X |
| E-Number (Finland) | 3709072 |
| Product Net Height | 78 mm |
| Product Net Weight | 0.113 kg |
| Connecting Capacity | 1x 0.75-2.5 mm² |
| Package Level 1 EAN | 4016779837200 |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Degree of Protection | IP20 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Phase Loss Sensitive | Yes |
| Customs Tariff Number | 85364900 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 22.5 mm |
| Wire Stripping Length | 7 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 78 mm |
| Ambient Air Temperature | Storage -25 ... +70 °C |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Instructions and Manuals | 2CDC135016M6802 |
| Recommended Screw Driver | Pozidriv 1 |
| Resistance to Vibrations | 5g 3 … 150 Hz |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Connecting Capacity UL/CSA | Flexible with Ferrule 1x 18-14 AWG |
| Object Classification Code | B |
| Product Net Depth / Length | 102 mm |
| Suitable for Product Class | Universal Motor Controllers |
| Package Level 1 Gross Weight | 0.12 kg |
| Replacement Product ID (NEW) | 1SAJ650000R0101 |
| Rated Insulation Voltage (Ui) | 690 V |
| Declaration of Conformity - CE | 1SVD981039 |
| Package Level 1 Depth / Length | 102 mm |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Data Sheet, Technical Information | 2CDC135013D0202 |
| Rated Control Supply Voltage (Us) | 24 V DC |
| IDEA Granular Category Code (IGCC) | 4776 >> Electronic motor control and protection device |
| Toxic Substances Control Act - TSCA | 2CMT2023-006538 |
| Rated Operational Current AC-15 (Ie) | (240 V) 1.5 A |
| Rated Operational Current DC-13 (Ie) | (24 V DC) 1 A |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 150 m/s² |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
Product Description
VI150 P/UMC VOLTAGE MODULUS 100
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
