1SAJ611000R0101

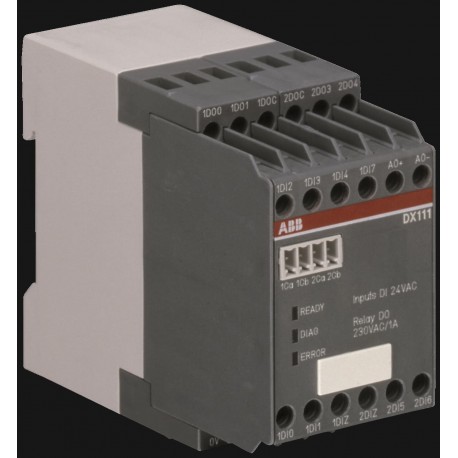

1SAJ611000R0101 ABB DX111 IO-Module for UMC100, 8 DI 24VDC, 4 DO, 1AO, Supply 24VDC
$0.00USD
4669 in stock
Key Specifications
EAN::4013614403712
Customs Tariff Number::85364900
Minimum Order Quantity::1 piece
Standards: (Environmental):IEC/EN 60947-1IEC/EN 60947-5-1IEC/EN 61131-2UL 508CAN/CSA C22.2 No.14
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN: | 4013614403712 |
| Customs Tariff Number: | 85364900 |
| Minimum Order Quantity: | 1 piece |
| Standards: (Environmental) | IEC/EN 60947-1IEC/EN 60947-5-1IEC/EN 61131-2UL 508CAN/CSA C22.2 No.14 |
| Power Loss: (Environmental) | Approximately 3 W |
| Product Name: (Environmental) | FBP Module |
| Product Net Width: (Ordering) | 45 mm |
| Sub-Function: (Environmental) | 0 - 10 V |
| Suitable For: (Environmental) | UMC100-FBP.0 |
| Analog Inputs: (Environmental) | 0 |
| Product Net Height: (Ordering) | 78 mm |
| Product Net Weight: (Ordering) | 0.22 kg |
| Terminal Type: (Environmental) | Screw Terminals |
| Analog Outputs: (Environmental) | 1 |
| Package Level 1 EAN: (Dimensions) | 4013614403712 |
| Pollution Degree: (Environmental) | 3 |
| Mounting Position: (Environmental) | Any |
| Product Main Type: (Environmental) | DX111-FBP |
| Input Voltage Type: (Environmental) | DC |
| Package Level 1 Units: (Dimensions) | 1 piece |
| Package Level 1 Width: (Dimensions) | 45 mm |
| Package Level 1 Height: (Dimensions) | 78 mm |
| RoHS Status: (Container Information) | Following EU Directive 2011/65/EU |
| Degree of Protection: (Environmental) | IP20 |
| Mounting on DIN Rail: (Environmental) | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Product Net Depth / Length: (Ordering) | 102 mm |
| CB Certificate: (Additional Information) | 1SAA962001-2002 |
| GL Certificate: (Additional Information) | 1SAA962005-0401 |
| DNV Certificate: (Additional Information) | DNV_E-13261 |
| Package Level 1 Gross Weight: (Dimensions) | 0.22 kg |
| Rated Operational Voltage: (Environmental) | Auxiliary Circuit 12 ... 250 V AC/DC |
| RoHS Information: (Additional Information) | 1SVD981039-0001 |
| Package Level 1 Depth / Length: (Dimensions) | 102 mm |
| Ambient Air Temperature: (Container Information) | Storage -25 ... +70 °COperation 0 ... +55 °C |
| Number of Digital Inputs DC 24V: (Environmental) | 8 |
| Number of Digital Output Relays: (Environmental) | 4 |
| Number of Digital Inputs AC 230V: (Environmental) | 0 |
| Number of Digital Outputs DC 24V: (Environmental) | 0 |
| Instructions and Manuals: (Additional Information) | 2CDC135012M6801 |
| Rated Control Supply Voltage (Us): (Environmental) | 24 V DC |
| Environmental Information: (Additional Information) | 1SAA962007-2401 |
| Rated Operational Current AC-15 (Ie): (Environmental) | (240 V) 1.5 A |
| Rated Operational Current DC-13 (Ie): (Environmental) | (125 V) 0.22 A(24 V) 1 A(250 V) 0.11 A |
| Declaration of Conformity - CE: (Additional Information) | 1SVD981039-0001 |
| ETIM 4: (Certificates and Declarations (Document Number)) | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 5: (Certificates and Declarations (Document Number)) | EC002613 - Extension module for electronic motor control and protection device |
| ETIM 6: (Certificates and Declarations (Document Number)) | EC002613 - Extension module for motor management device |
| UNSPSC: (Certificates and Declarations (Document Number)) | 43172000 |
| eClass: (Certificates and Declarations (Document Number)) | 7.0 27370805 |
| Data Sheet, Technical Information: (Additional Information) | 2CDC135013D0201 |
| WEEE Category: (Certificates and Declarations (Document Number)) | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Resistance to Shock acc. to IEC 60068-2-27: (Container Information) | 11 ms Pulse 150 m/s² |
| Resistance to Vibrations acc. to IEC 60068-2-6: (Container Information) | 5g / 3 … 150 Hz |
| Object Classification Code: (Certificates and Declarations (Document Number)) | B |
Product Description
MOD. EXPANSION DX111-FBP.0
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
