1SAJ530000R1200

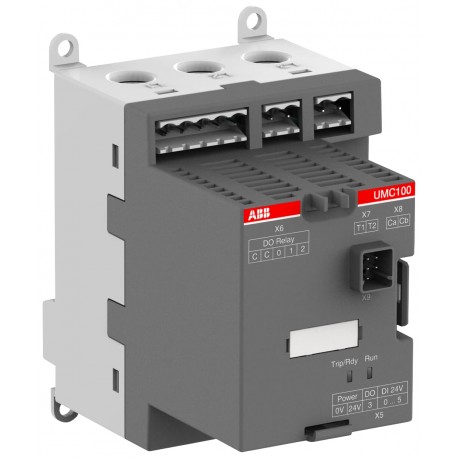

1SAJ530000R1200 ABB UMC100 Universal Motor Controller 110-240V ATEX
$0.00USD
4550 in stock
Key Specifications
:Main Circuit 60 Hz
ETIM 6:EC002572 - Motor management device
ETIM 7:EC002572 - Motor management device
ETIM 8:EC002572 - Motor management device
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Main Circuit 60 Hz | |
| ETIM 6 | EC002572 - Motor management device |
| ETIM 7 | EC002572 - Motor management device |
| ETIM 8 | EC002572 - Motor management device |
| ETIM 9 | EC002572 - Motor management device |
| UNSPSC | 39121552 |
| eClass | V11.0 : 27370804 |
| Standards | CAN/CSA C22.2 No.60947-1 |
| Power Loss | Approximately 3.5 W |
| Trip Class | class 5E |
| RoHS Status | Following EU Directive 2011/65/EU |
| Setting Range | 0.24 ... 63 A |
| Terminal Type | Screw Terminals |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| CB Certificate | DK-41658-A1-UL |
| WEEE B2C / B2B | Business To Business |
| ABS Certificate | 17-HG1610225-PDA |
| CCC Certificate | 2015010309791750 |
| CQC Certificate | CQC2015010309791750 |
| DNV Certificate | TAA000015X-revision4 |
| Number of Poles | 3 |
| ATEX Certificate | 9AKK106713A2630 |
| Pollution Degree | 3 |
| RoHS Information | 1SVD981001-4401 |
| Mounting Position | 1 ... 6 |
| Product Main Type | UMC100.3 UC |
| Product Net Width | 70 mm |
| REACH Declaration | 1SAA983001-4501 |
| Tightening Torque | Auxiliary Circuit 0.5 N·m |
| cULus Certificate | 20141015_E48139 |
| E-Number (Finland) | 3709070 |
| Product Net Height | 106 mm |
| Product Net Weight | 315 g |
| Connecting Capacity | 1x 0.2-2.5 mm² |
| Package Level 1 EAN | 4013614496943 |
| Rated Frequency (f) | Main Circuit 50 Hz |
| Degree of Protection | IP20 |
| Customs Tariff Number | 85371091 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 142 mm |
| Wire Stripping Length | 7 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 117 mm |
| Ambient Air Temperature | Operation 0 ... +60 °C |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Instructions and Manuals | 1SAC200340M0001 |
| Recommended Screw Driver | Pozidriv 1 |
| Resistance to Vibrations | 4g 2 ... 100 Hz |
| Tightening Torque UL/CSA | Auxiliary Circuit 8 in·lb |
| Ex Operating Instructions | 1SAC200340M0001 |
| Minimum Mounting Distance | 0 mm |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Connecting Capacity UL/CSA | 1x 28-12 AWG |
| Object Classification Code | B |
| Product Net Depth / Length | 107 mm |
| Package Level 1 Gross Weight | 325 g |
| Declaration of Conformity - CE | 1SVD981037-00 |
| Package Level 1 Depth / Length | 122 mm |
| Rated Operational Current (Ie) | 63 A |
| Declaration of Conformity - CCC | 2020980309000543 |
| Maximum Operating Voltage UL/CSA | Auxiliary Circuit 230 V AC/DC |
| Data Sheet, Technical Information | 2CDC135033D0202 |
| Rated Control Supply Voltage (Us) | 110 ... 240 V AC/DC |
| IDEA Granular Category Code (IGCC) | 4776 >> Electronic motor control and protection device |
| Toxic Substances Control Act - TSCA | 2CMT2023-006538 |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 4 kV |
| Resistance to Shock acc. to IEC 60068-2-27 | 15g 1 shock 11 ms |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
Product Description
UMC100.3 UC EX CONT. UNIV. ATEX ENGINE
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
