1SAJ243000R0001

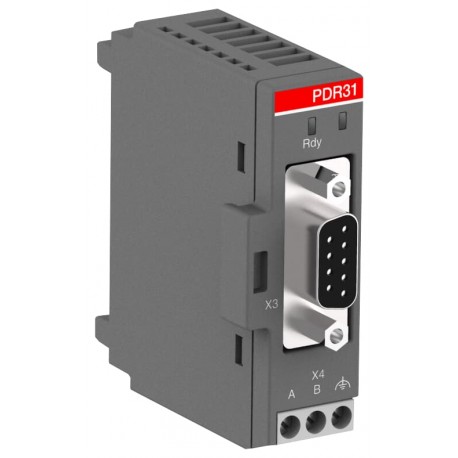

1SAJ243000R0001 ABB PDR31.0 PROFIBUS Termination Unit For usage with SMK3.0
$0.00USD
3463 in stock
Key Specifications
:Control Circuit 0.5 N·m
ETIM 6:EC001604 - Fieldbus, decentr. periphery - communication module
ETIM 7:EC001604 - Fieldbus, decentr. periphery - communication module
ETIM 8:EC001604 - Fieldbus, decentr. periphery - communication module
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Control Circuit 0.5 N·m | |
| ETIM 6 | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 7 | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 8 | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 9 | EC001604 - Fieldbus, decentr. periphery - communication module |
| eClass | V11.0 : 27242608 |
| Standards | IEC/EN 61131-2 |
| Power Loss | Approximately 0.5 W |
| RoHS Status | Following EU Directive 2011/65/EU |
| Suitable For | UMC100 |
| Mounting Type | UMC100.3/Single Mounting |
| Terminal Type | Screw Terminals |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| ABS Certificate | 9AKK106930A7739 |
| DNV Certificate | TAA000015X-revision4 |
| ATEX Certificate | Not available |
| RoHS Information | 1SVD981001-4401 |
| Product Main Type | PDR31.0 |
| Product Net Width | 22.5 mm |
| REACH Declaration | 1SAA983001-4501 |
| Tightening Torque | Auxiliary Circuit 0.5 N·m |
| Product Net Height | 64 mm |
| Product Net Weight | 0.03 kg |
| Connecting Capacity | 1x 0.2-2.5 mm² |
| Package Level 1 EAN | 4013614499647 |
| Degree of Protection | IP20 |
| Mounting on DIN Rail | With Single Mounting KIt |
| Customs Tariff Number | 85176200 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 112 mm |
| Wire Stripping Length | 7 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 67 mm |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Instructions and Manuals | 1SAC200304M0001 |
| Recommended Screw Driver | Pozidriv 1 |
| Connecting Capacity UL/CSA | Flexible with Ferrule 1x 28-12 AWG |
| Object Classification Code | K |
| Product Net Depth / Length | 59 mm |
| Package Level 1 Gross Weight | 0.03 kg |
| Declaration of Conformity - CE | 1SVD981004 |
| Package Level 1 Depth / Length | 26 mm |
| Data Sheet, Technical Information | 2CDC192016D0201 |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Toxic Substances Control Act - TSCA | 2CMT2023-006538 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
Product Description
PDR31.0 MOD. RESIST. FIN PROFIBUS UMC100.3
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
