1987083

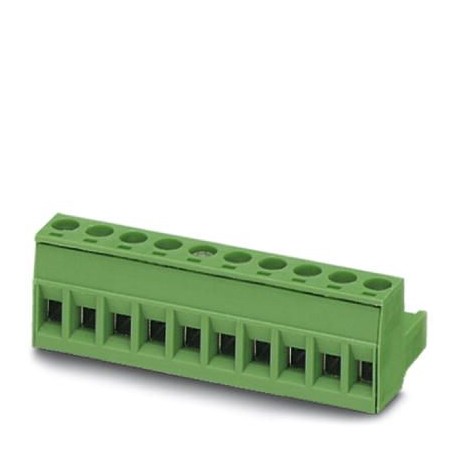

1987083 PHOENIX CONTACT Printed-circuit board connector
$0.00USD
3926 in stock
Key Specifications
GTIN:4017918925048
Note:Made to Order (non-returnable)
Orderkey:1987083
Packing unit:50 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918925048 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1987083 |
| Packing unit | 50 pc |
| Country of origin | DE (Germany) |
| (Connection data) | CSA |
| Custom tariff number | 85366990 |
| Minimum order quantity | 50 pc |
| Pitch (Key Commercial Data) | 5.08 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Connection method (Dimensions) | Screw connection with tension sleeve |
| Range of articles (Dimensions) | MSTB 2,5/..-ST |
| Nominal current IN (Dimensions) | 12 A |
| Number of positions (Dimensions) | 3 |
| Dimension a (Key Commercial Data) | 10.16 mm |
| Width [ w ] (Key Commercial Data) | 15.24 mm |
| Height [ h ] (Key Commercial Data) | 15 mm |
| Length [ l ] (Key Commercial Data) | 18.3 mm |
| Nominal cross section (Dimensions) | 2.5 mm² |
| Rated voltage (III/3) (Dimensions) | 250 V |
| Weight per Piece (excluding packing) | 5.090 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Maximum AWG according to UL/CUL (General) | 12 |
| Minimum AWG according to UL/CUL (General) | 30 |
| Conductor cross section AWG max. (General) | 12 |
| Conductor cross section AWG min. (General) | 24 |
| Conductor cross section solid max. (General) | 2.5 mm² |
| Conductor cross section solid min. (General) | 0.2 mm² |
| Connection in acc. with standard (Dimensions) | EN-VDE |
| Conductor cross section flexible max. (General) | 2.5 mm² |
| Conductor cross section flexible min. (General) | 0.2 mm² |
| Connection in acc. with standard (Connection data) | EN-VDE |
| 2 conductors with same cross section, solid max. (General) | 1 mm² |
| 2 conductors with same cross section, solid min. (General) | 0.2 mm² |
| 2 conductors with same cross section, stranded max. (General) | 1.5 mm² |
| 2 conductors with same cross section, stranded min. (General) | 0.2 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (General) | 2.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (General) | 0.25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (General) | 2.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (General) | 0.25 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (General) | 1 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (General) | 0.25 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (General) | 1.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (General) | 0.5 mm² |
Product Description
Connector for printed circuit board, nominal section: 2.5 mm², color: green, nominal current: 12 A, dimensioning voltage (III/2): 320 V, contact surface: Tin, contact type: Connection female, number o
