In Stock Hot Product
195B0729

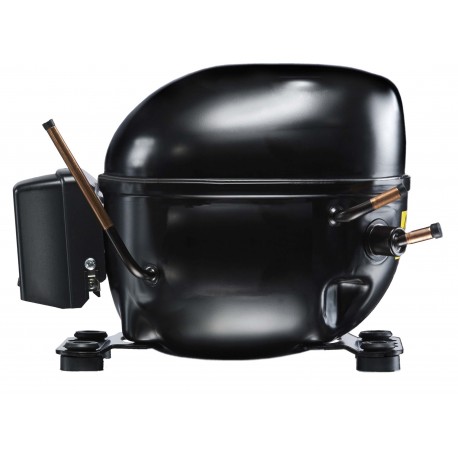

195B0729 DANFOSS REFRIGERATION Single pack DLE4.8CN 220-240V/50hz
$0.00USD
3197 in stock
Key Specifications
EAN ():5702424662134
RLA ():1.10 A
Type ():DLE4.8
Colour ():Black
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702424662134 |
| RLA () | 1.10 A |
| Type () | DLE4.8 |
| Colour () | Black |
| Family () | DL |
| Volume () | 16.523 Liter |
| Oil type () | POE |
| Economizer () | No |
| Motor type () | CSIRRSCRRSIR |
| Net weight () | 8.84 Kg |
| Technology () | Reciprocating |
| Width [mm] () | 157 mm |
| Description () | DLE4.8CN |
| LRA LST [A] () | 5.7 A |
| Length [mm] () | 233 mm |
| Applications () | LBPMBP |
| Gross weight () | 8.84 Kg |
| Model number () | DLE4.8CN |
| Refrigerants () | R290 |
| Product group () | Hermetic compressors |
| Segment usage () | Refrigeration LTRefrigeration MT |
| Frequency [Hz] () | 50 |
| Packing format () | Single pack |
| Speed Platform () | Fixed-speed |
| Brand technique () | Reciprocating compressor |
| LRA HST 60Hz [A] () | 6.56 A |
| Liquid injection () | No |
| Packing quantity () | 1 |
| Total height [mm] () | 175 mm |
| Oil quantity [cm3] () | 230 cm³ |
| Swept volume [cm3] () | 4.8 cm³ |
| Free gas volume [cm3] () | 1390 cm³ |
| Cut in current HST [A] () | 6.6 A |
| Cut in current LST [A] () | 9.9 A |
| Product Name Description () | Reciprocating compressor DL |
| Run capacitor capacitance () | 5 µF |
| Height from baseplate [mm] () | 169 mm |
| Compressor power supply [V] () | 220-240/1/50 |
| Process connection comments () | Rubber plug |
| Process connection material () | Copper |
| Start capacitor capacitance () | 60 µF |
| Suction connection material () | Copper |
| Discharge connection comments () | Rubber plug |
| Discharge connection material () | Copper |
| Process connection angle [°] () | 60 ° |
| Refrigerant charge [kg] [Max] () | 0.15 kg |
| Suction connection angle [°] () | 18 ° |
| Rotational speed at 50Hz [rpm] () | 3000 rpm |
| Discharge connection angle [°] () | 25 ° |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Process connection diameter [mm] () | 6.2 mm |
| Suction connection diameter [mm] () | 8.2 mm |
| Discharge connection diameter [mm] () | 6.2 mm |
| Winding temperature stat [°C] [Max] () | 125 °C |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 50Hz [V] () | 187 V |
| High value of voltage range at 50Hz [V] () | 255 V |
| Low value of nominal voltage at 50Hz [V] () | 220 V |
| High value of nominal voltage at 50Hz [V] () | 240 V |
| Winding temperature short term [°C] [Max] () | 135 °C |
| Main winding resistance for single-phase compressors [Ohm] () | 17.62 |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] () | 18.54 |
Product Description
Reciprocating compressor, DLE4.8CN
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Refrigerants: R290, Segment usage: Refrigeration LT; Refrigeration MT, Compressor power supply [V]: 220-240/1/50
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
