195B0714

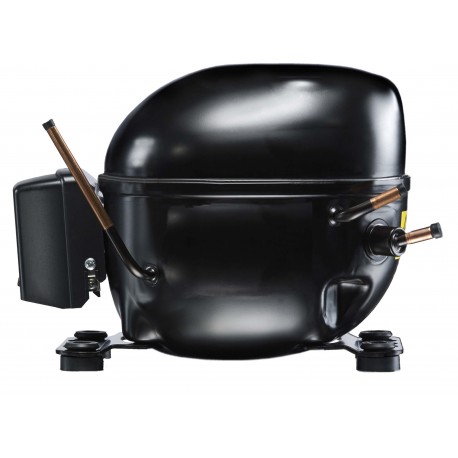

195B0714 DANFOSS REFRIGERATION Reciprocating compressor, DLE5.7CN
$0.00USD
3043 in stock
Key Specifications
RLA ():1.6 A
Type ():DLE5.7
Phase ():1
Colour ():Black
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| RLA () | 1.6 A |
| Type () | DLE5.7 |
| Phase () | 1 |
| Colour () | Black |
| Family () | DL |
| Volume () | 16.298 Liter |
| Approval () | CCCCE |
| Oil type () | POE |
| Economizer () | No |
| Motor type () | CSIRRSCRRSIR |
| Net weight () | 8.2 Kg |
| Technology () | Reciprocating |
| Width [mm] () | 157 mm |
| Description () | DLE5.7CN |
| LRA HST [A] () | 9.3 A |
| LRA LST [A] () | 7.7 A |
| Length [mm] () | 233 mm |
| Gross weight () | 8.768 Kg |
| Model number () | DLE5.7CN |
| Product group () | Hermetic compressors |
| Frequency [Hz] () | 50 |
| Oil charge [L] () | 0.23 L |
| Packing format () | Single pack |
| Brand technique () | Reciprocating compressor |
| LRA HST alt [A] () | 9.3 A |
| Capacity control () | Fixed speed |
| Voltage 50Hz [V] () | 220 V |
| Approval standard () | EN 60335-2-34 with Annex AA |
| Total height [mm] () | 175 mm |
| Oil quantity [cm3] () | 230 cm³ |
| Swept volume [cm3] () | 5.7 cm³ |
| Free gas volume [cm3] () | 1 cm³ |
| Cut in current HST [A] () | 9.3 A |
| Cut in current LST [A] () | 12.5 A |
| Voltage 50Hz [V] [Max] () | 240 V |
| Capacity of capacitor A () | 5 µF |
| Capacity of capacitor B () | 80 uF |
| Product Name Description () | Reciprocating compressor DL |
| Run capacitor capacitance () | 5 µF |
| Height from baseplate [mm] () | 169 mm |
| No. of phases (compressor) () | 1 |
| Compressor power supply [V] () | 115/1/60 |
| Process connection comments () | Rubber plug |
| Process connection material () | Copper |
| Suction connection material () | Cu-plated steel |
| Discharge connection comments () | Rubber plug |
| Discharge connection material () | Copper |
| Process connection angle [°] () | 60 ° |
| Refrigerant charge [kg] [Max] () | 0.15 kg |
| Suction connection angle [°] () | 18 ° |
| Rotational speed at 50Hz [rpm] () | 2900 rpm |
| Discharge connection angle [°] () | 25 ° |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Oil cooler connection angle [°] () | 60 ° |
| Process connection diameter [mm] () | 4.5 mm |
| Suction connection diameter [mm] () | 6.2 mm |
| Discharge connection diameter [mm] () | 5 mm |
| Winding temperature stat [°C] [Max] () | 125 °C |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 50Hz [V] () | 198 V |
| High value of voltage range at 50Hz [V] () | 254 V |
| Low value of nominal voltage at 50Hz [V] () | 220 V |
| High value of nominal voltage at 50Hz [V] () | 230 V |
| Winding temperature short term [°C] [Max] () | 135 °C |
| Main winding resistance for single-phase compressors [Ohm] () | 13.5 |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] () | 14.3 |
Product Description
Single pack DLE5.7CN 220-240V/50hz SŘ6,2
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Refrigerants: R290, Segment usage: Refrigeration LT; Refrigeration MT, Compressor power supply [V]: 115/1/60
