195B0650

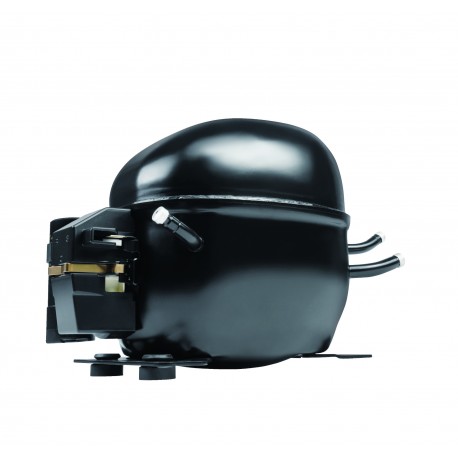

195B0650 DANFOSS REFRIGERATION Service-KIT SC15CLX.2 compress
$0.00USD
3580 in stock
Key Specifications
EAN:Five trillion seven hundred two billion four hundred twenty eight million five hundred thirty eight thousand eight hundred seventeen
Oil:POE
RLA:4 To
Color:Black
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | Five trillion seven hundred two billion four hundred twenty eight million five hundred thirty eight thousand eight hundred seventeen |
| Oil | POE |
| RLA | 4 To |
| Color | Black |
| Phase | One |
| Economizer | Not |
| Net weight | 14.51 Kg |
| Technology | Alternative |
| Description | SC15CLX.2 |
| LRA HST [A] | 23.6 To |
| Applications | LBP |
| Gross weight | 15.19 Kg |
| Model number | SC15CLX.2 |
| Refrigerants | R404AR507 |
| Amount of oil | 550 cm3 |
| Frequency [Hz] | Sixty |
| Oil charge [L] | 550 L |
| Use of segment | Refrigeration LT |
| Capacity control | Fixed speed |
| Number of scheme | Eight thousand two hundred fifty eight |
| Packaging format | Individual package |
| Type designation | Compressor |
| Units of packing | One |
| Height total [mm] | 219 mm |
| Configuration code | Individual |
| Swept volume [cm3] | 15.28 cm3 |
| Voltage, 60 Hz [V] | 208 V |
| Type of motherboard | Universal |
| Technique of the brand | Reciprocating compressors, type |
| Capacity of capacitor B | 80 uF |
| Or packaging individual | Code individual package |
| Voltage 60 Hz [V] [max.] | 230 V |
| Volume of free gas [cm3] | 1510 cm3 |
| Merged Type of engine and | CSR |
| Run capacitor capacitance | 10 µF |
| Current connection HST [A] | 23.6 To |
| Height from baseplate [mm] | 213 mm |
| Ability of the capacitor To | 10 µF |
| Start capacitor capacitance | 80 µF |
| Merged Approval standard and | ECUL |
| N. º of phases (compressor) | One |
| Refrigerant charge [kg] [Max] | 1.3 kg |
| Rotation speed at 50 Hz [rpm] | 0 rpm |
| Rotation speed at 60 Hz [rpm] | 3500 rpm |
| Suction connection height [mm] | 193 mm |
| Angle of the connection process | 37 ° |
| Energy level of the application | Compressor LBP standard |
| Discharge connection height [mm] | 110 mm |
| Process connection diameter [mm] | 6.5 mm |
| Comments on the process connection | Cover of The |
| Comments on the suction connection | Cover of The |
| Diameter discharge connection [mm] | 6.5 mm |
| Material of the process connection | Steel-plated Cu |
| Material of the suction connection | Steel treated with copper |
| Angle of the connection suction [°] | 37 ° |
| Comments on the discharge connection | Cover of The |
| Material of the discharge connection | Steel-plated Cu |
| Angle of the discharge connection [°] | 37 ° |
| Low value of voltage range at 50hz [V] | 0 V |
| Diameter of the suction connection [mm] | 9.63 mm |
| High value of voltage range at 50hz [V] | 0 V |
| Winding temperature, stable [°C] [Max] | 125 °C |
| High value of nominal voltage at 50 Hz [V] | 0 V |
| Low value of the rated voltage at 50 Hz [V] | 0 V |
| Low value of the voltage range at 60 Hz [V] | 187 V |
| High value of the voltage range at 60 Hz [V] | 254 V |
| Low value of the nominal voltage at 60 Hz [V] | 208 V |
| High value of the nominal voltage at 60 Hz [V] | 230 V |
| Temperature of the winding, the short-term [°C] [Max] | 135 °C |
| Resistance of the primary winding for compressors in single-phase [Ohm] | 3.3 Ohm |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] | 13.6 Ohm |
