195B0648

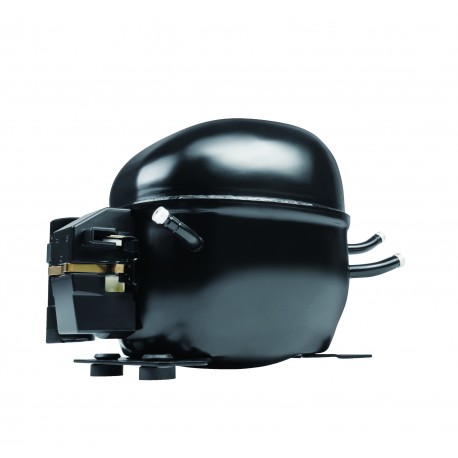

195B0648 DANFOSS REFRIGERATION Kit SC18GHX 220V 50/60Hz R134A
$0.00USD
3083 in stock
Key Specifications
Oil:POE
RLA:3.9 To
Color:Black
Phase:One
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Oil | POE |
| RLA | 3.9 To |
| Color | Black |
| Phase | One |
| Economizer | Not |
| Net weight | 14.94 Kg |
| Technology | Alternative |
| Description | Service Kit for compressor SC18GH |
| LRA HST [A] | 22.1 |
| Applications | BPH |
| Gross weight | 15.17 Kg |
| Model number | SC18GH |
| Refrigerants | R134a |
| Amount of oil | 500 cm3 |
| Frequency [Hz] | 50/60 |
| Oil charge [L] | 500 L |
| Use of segment | Refrigeration MT |
| Capacity control | Fixed speed |
| Number of scheme | Eight thousand two hundred fifty seven |
| Packaging format | Individual package |
| Type designation | Compressor |
| Units of packing | One |
| Height total [mm] | 219 mm |
| Configuration code | Individual |
| Swept volume [cm3] | 17.69 cm3 |
| Voltage, 50 Hz [V] | 220 V |
| Voltage, 60 Hz [V] | 220 V |
| Type of motherboard | Universal |
| Technique of the brand | Reciprocating compressors, type |
| Capacity of capacitor B | 80 uF |
| Or packaging individual | Code individual package |
| Voltage 60 Hz [V] [max.] | 240 V |
| Volume of free gas [cm3] | 1460 cm3 |
| Merged Type of engine and | CSR |
| Run capacitor capacitance | 10 µF |
| Voltage, 50 Hz [V] [max.] | 240 V |
| Current connection HST [A] | 22.1 |
| Height from baseplate [mm] | 213 mm |
| Ability of the capacitor To | 10 µF |
| Start capacitor capacitance | 80 µF |
| Merged Approval standard and | CCCCE en 60335-2-34 with Annex AAUL |
| N. º of phases (compressor) | One |
| Refrigerant charge [kg] [Max] | 1.3 kg |
| Rotation speed at 50 Hz [rpm] | 2900 rpm |
| Rotation speed at 60 Hz [rpm] | 3500 rpm |
| Suction connection height [mm] | 193 mm |
| Angle of the connection process | 37 ° |
| Energy level of the application | Compressor BPH standard |
| Discharge connection height [mm] | 110 mm |
| Nominal cooling capacity at 60Hz | 1.8 kW |
| Process connection diameter [mm] | 6.2 mm |
| Comments on the process connection | Cover of The |
| Comments on the suction connection | Cover of The |
| Diameter discharge connection [mm] | 8.2 mm |
| Material of the process connection | Steel-plated Cu |
| Material of the suction connection | Steel treated with copper |
| Angle of the connection suction [°] | 37 ° |
| Comments on the discharge connection | Cover of The |
| Material of the discharge connection | Steel-plated Cu |
| Nominal cooling capacity of 60 kBTU/h | 6.08 KBtu/h |
| Angle of the discharge connection [°] | 37 ° |
| Low value of voltage range at 50hz [V] | 198 V |
| Diameter of the suction connection [mm] | 10.2 mm |
| High value of voltage range at 50hz [V] | 254 V |
| Winding temperature, stable [°C] [Max] | 125 °C |
| High value of nominal voltage at 50 Hz [V] | 230 V |
| Low value of the rated voltage at 50 Hz [V] | 220 V |
| Low value of the voltage range at 60 Hz [V] | 198 V |
| High value of the voltage range at 60 Hz [V] | 254 V |
| Low value of the nominal voltage at 60 Hz [V] | 220 V |
| High value of the nominal voltage at 60 Hz [V] | 230 V |
| Temperature of the winding, the short-term [°C] [Max] | 135 °C |
| Resistance of the primary winding for compressors in single-phase [Ohm] | 3.5 Ohm |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] | 12.9 Ohm |
