195B0446

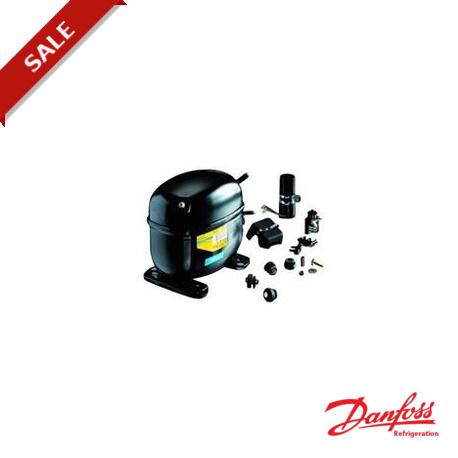

195B0446 DANFOSS REFRIGERATION SERVICE-Kit NLE11KK.4 220V
$0.00USD
3101 in stock
Key Specifications
RLA:0.9 A
Phase:1
Colour:Black
Oil type:Mineral
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| RLA | 0.9 A |
| Phase | 1 |
| Colour | Black |
| Oil type | Mineral |
| Type Code | NL |
| • Cover | 103N2010 |
| Economizer | No |
| Motor type | RSCR; RSIR |
| Net weight | 10.18 Kg |
| Technology | Reciprocating |
| • Shield | 103N0476 |
| LRA LST [A] | 4.8 |
| Refrigerant | R600a |
| Applications | LBP |
| Gross weight | 10.18 Kg |
| Model number | NLE11KK.4 |
| Segment usage | Refrigeration LT |
| Drawing number | 8248 |
| Frequency [Hz] | 50 |
| Oil charge [L] | 270 |
| Packing format | Single pack |
| • Compressor | 105H6952 |
| Base plate type | EU small |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Packing quantity | 1 |
| Type designation | Compressor |
| Voltage 50Hz [V] | 220 |
| Approval standard | CE EN 60335-2-34 with Annex AA |
| Total height [mm] | 190 |
| Configuration code | Single |
| Oil quantity [cm3] | 270 |
| Swept volume [cm3] | 11.15 |
| • Starting device | 103N0011 |
| Embalagem individual | Single pack code number |
| Free gas volume [cm3] | 2310 |
| • Cover Description | COVER TL,NL,FR-220V |
| Cut in current LST [A] | 9.3 |
| Voltage 50Hz [V] [Max] | 240 |
| • Shield Description | U-cover |
| Capacity of capacitor A | 4 |
| Application energy level | Energy-optimised compressor |
| • Mounting accessories | 118-1917 |
| Run capacitor capacitance | 4 |
| Height from baseplate [mm] | 183 |
| No. of phases (compressor) | 1 |
| • Compressor Description | NLE11KK.4 |
| Process connection comments | Al-cap |
| Process connection material | Cu-plated steel |
| Suction connection comments | Al-cap |
| Suction connection material | Cu-plated steel |
| Discharge connection comments | Al-cap |
| Discharge connection material | Cu-plated steel |
| Process connection angle [°] | 25 |
| Refrigerant charge [kg] [Max] | 0.15 |
| Suction connection angle [°] | 15 |
| Rotational speed at 50Hz [rpm] | 2900 |
| Rotational speed at 60Hz [rpm] | 0 |
| Discharge connection angle [°] | 35 |
| • Starting device Description | PTC STARTER 220V 25ohm type S-III 6,3mm |
| Process connection diameter [mm] | 6.2 |
| Suction connection diameter [mm] | 6.2 |
| Discharge connection diameter [mm] | 5 |
| Winding temperature stat [°C] [Max] | 125 |
| • Mounting accessories Description | MOUNTING ACCESSORIES |
| Low value of voltage range at 50Hz [V] | 198 |
| Low value of voltage range at 60Hz [V] | 0 |
| High value of voltage range at 50Hz [V] | 254 |
| High value of voltage range at 60Hz [V] | 0 |
| Low value of nominal voltage at 50Hz [V] | 220 |
| Low value of nominal voltage at 60Hz [V] | 0 |
| High value of nominal voltage at 50Hz [V] | 230 |
| High value of nominal voltage at 60Hz [V] | 0 |
| Winding temperature short term [°C] [Max] | 135 |
| Main winding resistance for single-phase compressors [Ohm] | 16.4 |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] | 15.7 |
