195B0437

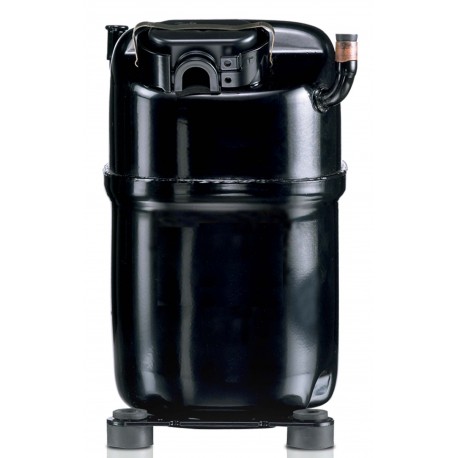

195B0437 DANFOSS REFRIGERATION GS26MLX MBP R404A/R507 220-240V 50HZ
$0.00USD
3933 in stock
Key Specifications
EAN ():5702428583404
RLA ():6.40 A
Type ():GS26
Colour ():Black
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428583404 |
| RLA () | 6.40 A |
| Type () | GS26 |
| Colour () | Black |
| Family () | GS |
| Volume () | 32.103 Liter |
| Oil type () | POE |
| Economizer () | No |
| Motor type () | CSR |
| Net weight () | 23.901 Kilogram |
| Technology () | Reciprocating |
| Width [mm] () | 173 mm |
| Description () | GS26MLX |
| LRA HST [A] () | 35 A |
| Length [mm] () | 235 mm |
| Applications () | MBP |
| Gross weight () | 23.901 Kilogram |
| Model number () | GS26MLX |
| Refrigerants () | R404A |
| Product group () | Hermetic compressors |
| Segment usage () | Refrigeration MT |
| Frequency [Hz] () | 50 |
| Packing format () | Single pack |
| Speed Platform () | Fixed-speed |
| Brand technique () | Reciprocating compressor |
| Capacity control () | Fixed speed |
| LRA HST 60Hz [A] () | 35 A |
| Liquid injection () | No |
| Packing quantity () | 1 |
| SCIP dossier no. () | cd1d92df-acc4-43d9-8eb6-bb380e61d93f |
| Voltage 50Hz [V] () | 220 V |
| Total height [mm] () | 259 mm |
| Configuration code () | Single |
| Oil quantity [cm3] () | 900 cm³ |
| Swept volume [cm3] () | 26.3 cm³ |
| Free gas volume [cm3] () | 3670 cm³ |
| Cut in current HST [A] () | 35 A |
| Voltage 50Hz [V] [Max] () | 240 V |
| Product Name Description () | Reciprocating compressor GS |
| SCIP dossier product name () | GL |
| Height from baseplate [mm] () | 247 mm |
| No. of phases (compressor) () | 1 |
| Compressor power supply [V] () | 220-240/1/50 |
| Process connection material () | Copper |
| Suction connection material () | Copper |
| Discharge connection material () | Copper |
| Process connection angle [°] () | 90 ° |
| Refrigerant charge [kg] [Max] () | 2 kg |
| Suction connection angle [°] () | 90 ° |
| Process connection height [mm] () | 234 mm |
| Rotational speed at 50Hz [rpm] () | 3000 rpm |
| Suction connection height [mm] () | 234 mm |
| Discharge connection angle [°] () | 19 ° |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Discharge connection height [mm] () | 234 mm |
| Process connection diameter [mm] () | 6.5 mm |
| Suction connection diameter [mm] () | 16.1 mm |
| Discharge connection diameter [mm] () | 9.7 mm |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 50Hz [V] () | 187 V |
| High value of voltage range at 50Hz [V] () | 255 V |
| Low value of nominal voltage at 50Hz [V] () | 220 V |
| High value of nominal voltage at 50Hz [V] () | 240 V |
| Main winding resistance for single-phase compressors [Ohm] () | 1.8 |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] () | 8.1 |
Product Description
Reciprocating compressor, GS26MLX
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Refrigerants: R404A, Segment usage: Refrigeration MT, Compressor power supply [V]: 220-240/1/50
