195B0434

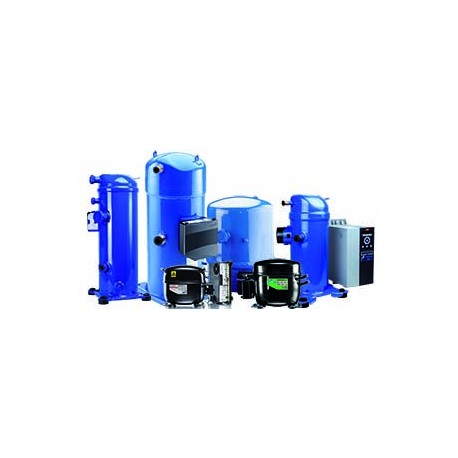

195B0434 DANFOSS REFRIGERATION SERVICE-Kit GS26GHX 220-240V 50Hz R134
$0.00USD
3157 in stock
Key Specifications
Oil:POE
Color:Black
Phase:One
Economizer:Not
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Oil | POE |
| Color | Black |
| Phase | One |
| Economizer | Not |
| Net weight | 21.88 Kg |
| Technology | Alternative |
| Description | Service Kit for compressor GS26GHX |
| Applications | BPH |
| Gross weight | 21.88 Kg |
| Model number | GS26GHX |
| Refrigerants | R134a |
| Amount of oil | 900 cm3 |
| Frequency [Hz] | Fifty |
| Oil charge [L] | 900 L |
| Use of segment | Refrigeration MT |
| Capacity control | Fixed speed |
| Number of scheme | Eight thousand five hundred forty two |
| Packaging format | Individual package |
| Type designation | Compressor |
| Units of packing | One |
| Height total [mm] | 259 mm |
| Configuration code | Individual |
| Swept volume [cm3] | 26.3 cm3 |
| Voltage, 50 Hz [V] | 220 V |
| Technique of the brand | Reciprocating compressors, type |
| Or packaging individual | Code individual package |
| LRA HST, alternative [A] | 24 To |
| Volume of free gas [cm3] | 3350 cm3 |
| Merged Type of engine and | CSR |
| Voltage, 50 Hz [V] [max.] | 240 V |
| Height from baseplate [mm] | 247 mm |
| Merged Approval standard and | CCCCE en 60335-2-34 with Annex AA |
| N. º of phases (compressor) | One |
| Refrigerant charge [kg] [Max] | 2 kg |
| Rotation speed at 50 Hz [rpm] | 2900 rpm |
| Rotation speed at 60 Hz [rpm] | 0 rpm |
| Suction connection height [mm] | 234 mm |
| Angle of the connection process | 90 ° |
| Energy level of the application | Compressor BPH standard |
| Discharge connection height [mm] | 234 mm |
| Process connection diameter [mm] | 6.5 mm |
| Diameter discharge connection [mm] | 8.2 mm |
| Material of the process connection | Copper |
| Material of the suction connection | Copper |
| Angle of the connection suction [°] | 90 ° |
| Material of the discharge connection | Copper |
| Angle of the discharge connection [°] | 19 ° |
| Low value of voltage range at 50hz [V] | 198 V |
| Current connection HST, alternative [A] | 24 To |
| Diameter of the suction connection [mm] | 12.9 mm |
| High value of voltage range at 50hz [V] | 254 V |
| High value of nominal voltage at 50 Hz [V] | 230 V |
| Low value of the rated voltage at 50 Hz [V] | 220 V |
| Low value of the voltage range at 60 Hz [V] | 0 V |
| High value of the voltage range at 60 Hz [V] | 0 V |
| Low value of the nominal voltage at 60 Hz [V] | 0 V |
| High value of the nominal voltage at 60 Hz [V] | 0 V |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 3.7 Ohm |
| Resistance of the primary winding for compressors in single-phase, alternative [ohm] | 2.5 Ohm |
