195B0378

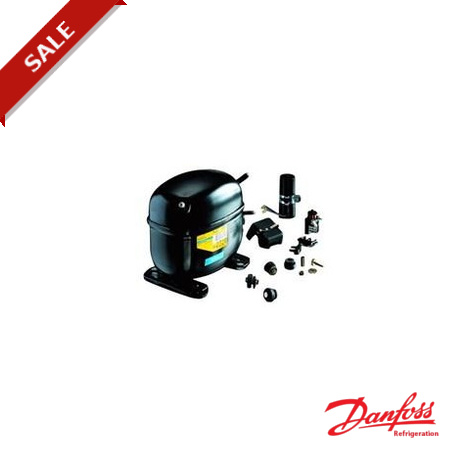

195B0378 DANFOSS REFRIGERATION SERVICE-Kit BD 250 GH Kompressor kpl.
$0.00USD
3440 in stock
Key Specifications
Colour:Black
Oil type:POE
Type Code:BD
Economizer:No
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Colour | Black |
| Oil type | POE |
| Type Code | BD |
| Economizer | No |
| Motor type | DC/PM |
| Net weight | 5.19 Kg |
| Technology | Reciprocating |
| Refrigerant | R134a |
| Applications | HBP; LBP; MBP |
| Gross weight | 5.19 Kg |
| Model number | BD250GH |
| Segment usage | Refrigeration LT; Refrigeration MT |
| Drawing number | 8539 |
| Frequency [Hz] | DC-12V |
| Oil charge [L] | 150 |
| Packing format | Single pack |
| • Compressor | 101Z0400 |
| Base plate type | EU small |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Packing quantity | 1 |
| Type designation | Compressor |
| Approval standard | E4 72/245 95/54 0211 37 |
| Total height [mm] | 137 |
| Configuration code | Single |
| Oil quantity [cm3] | 150 |
| Swept volume [cm3] | 2.5 |
| • Starting device | 101N0290 |
| Embalagem individual | Single pack code number |
| Voltage DC [V] [Max] | 24 |
| Voltage DC [V] [Min] | 12 |
| Free gas volume [cm3] | 870 |
| Application energy level | Direct current compressor |
| • Mounting accessories | 118-1917 |
| Height from baseplate [mm] | 135 |
| • Compressor Description | BD250GH |
| Process connection comments | Al-cap |
| Process connection material | Cu-plated steel |
| Suction connection comments | Al-cap |
| Suction connection material | Cu-plated steel |
| Discharge connection comments | Al-cap |
| Discharge connection material | Cu-plated steel |
| Process connection angle [°] | 45 |
| Refrigerant charge [kg] [Max] | 0.3 |
| Suction connection angle [°] | 40 |
| Rotational speed at 50Hz [rpm] | 0 |
| Rotational speed at 60Hz [rpm] | 0 |
| Suction connection height [mm] | 128 |
| Discharge connection angle [°] | 21 |
| • Starting device Description | BD ELECTRONIC |
| Discharge connection height [mm] | 73 |
| Process connection diameter [mm] | 6.2 |
| Suction connection diameter [mm] | 6.2 |
| Low value of voltage range DC [V] | 9 |
| Discharge connection diameter [mm] | 5 |
| Winding temperature stat [°C] [Max] | 125 |
| • Mounting accessories Description | MOUNTING ACCESSORIES |
| High value of voltage range at DC [V] | 31 |
| Low value of voltage range at 50Hz [V] | 0 |
| Low value of voltage range at 60Hz [V] | 0 |
| High value of voltage range at 50Hz [V] | 0 |
| High value of voltage range at 60Hz [V] | 0 |
| Low value of nominal voltage at 50Hz [V] | 0 |
| Low value of nominal voltage at 60Hz [V] | 0 |
| High value of nominal voltage at 50Hz [V] | 0 |
| High value of nominal voltage at 60Hz [V] | 0 |
| Winding temperature short term [°C] [Max] | 135 |
| Main winding resistance for single-phase compressors [Ohm] | 1.8 |
