195B0368

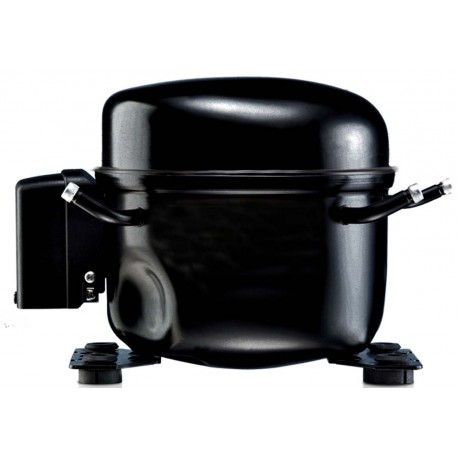

195B0368 DANFOSS REFRIGERATION SERVICE-Kit TLES7.5KK.3 KOMPR.220V new
$0.00USD
3826 in stock
Key Specifications
EAN ():5702424662417
RLA ():0.80 A
Type ():TLES7.5
Colour ():Black
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702424662417 |
| RLA () | 0.80 A |
| Type () | TLES7.5 |
| Colour () | Black |
| Family () | TL |
| Volume () | 10.89 Liter |
| Oil type () | Mineral |
| Economizer () | No |
| Motor type () | RSCRRSIR |
| Net weight () | 7.208 Kg |
| Technology () | Reciprocating |
| Width [mm] () | 157 mm |
| Description () | TLES7.5KK.3 |
| LRA LST [A] () | 3.5 A |
| Length [mm] () | 222 mm |
| Applications () | LBP |
| Gross weight () | 7.208 Kg |
| Model number () | TLES7.5KK.3 |
| Refrigerants () | R600a |
| Product group () | Hermetic compressors |
| Segment usage () | Refrigeration LT |
| Frequency [Hz] () | 50 |
| Packing format () | Single pack |
| Speed Platform () | Fixed-speed |
| Brand technique () | Reciprocating compressor |
| Capacity control () | Fixed speed |
| Liquid injection () | No |
| Packing quantity () | 1 |
| Voltage 50Hz [V] () | 220 V |
| Total height [mm] () | 173 mm |
| Configuration code () | Single |
| Oil quantity [cm3] () | 180 cm³ |
| Swept volume [cm3] () | 7.48 cm³ |
| Free gas volume [cm3] () | 1690 cm³ |
| Cut in current LST [A] () | 7.8 A |
| Voltage 50Hz [V] [Max] () | 240 V |
| Product Name Description () | Reciprocating compressor TL |
| Run capacitor capacitance () | 3 µF |
| Height from baseplate [mm] () | 169 mm |
| No. of phases (compressor) () | 1 |
| Compressor power supply [V] () | 220-240/1/50 |
| Process connection comments () | Al-cap |
| Process connection material () | Cu-plated steel |
| Suction connection material () | Cu-plated steel |
| Discharge connection comments () | Al-cap |
| Discharge connection material () | Cu-plated steel |
| Process connection angle [°] () | 32 ° |
| Refrigerant charge [kg] [Max] () | 0.15 kg |
| Suction connection angle [°] () | 30 ° |
| Rotational speed at 50Hz [rpm] () | 3000 rpm |
| Discharge connection angle [°] () | 28 ° |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Process connection diameter [mm] () | 6.2 mm |
| Suction connection diameter [mm] () | 6.2 mm |
| Discharge connection diameter [mm] () | 5 mm |
| Winding temperature stat [°C] [Max] () | 125 °C |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 50Hz [V] () | 187 V |
| High value of voltage range at 50Hz [V] () | 255 V |
| Low value of nominal voltage at 50Hz [V] () | 220 V |
| High value of nominal voltage at 50Hz [V] () | 240 V |
| Winding temperature short term [°C] [Max] () | 135 °C |
| Main winding resistance for single-phase compressors [Ohm] () | 28.2 |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] () | 17.8 |
Product Description
Reciprocating compressor, TLES7.5KK.3
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Refrigerants: R600a, Segment usage: Refrigeration LT, Compressor power supply [V]: 220-240/1/50
