In Stock Hot Product
195B0304

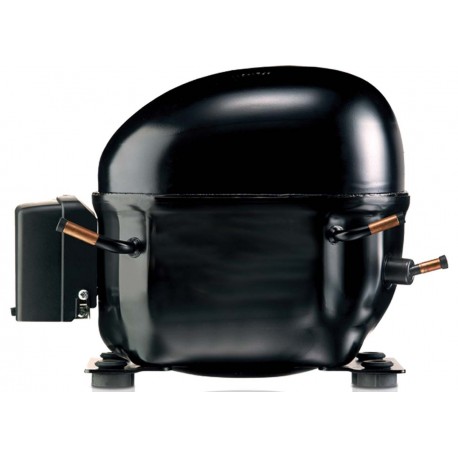

195B0304 DANFOSS REFRIGERATION Reciprocating compressor, NF7CLX
$0.00USD
4107 in stock
Key Specifications
EAN ():5702424534974
Type ():NF7
Colour ():Black
Family ():NF
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702424534974 |
| Type () | NF7 |
| Colour () | Black |
| Family () | NF |
| Volume () | 17.1 Liter |
| Oil type () | POE |
| Economizer () | No |
| Motor type () | CSIR |
| Net weight () | 10.828 Kg |
| Technology () | Reciprocating |
| Width [mm] () | 166 mm |
| Description () | NF7CLX |
| Length [mm] () | 254 mm |
| Applications () | LBPMBP |
| Gross weight () | 10.828 Kg |
| Model number () | NF7CLX |
| Refrigerants () | R404A |
| Product group () | Hermetic compressors |
| Segment usage () | Refrigeration LTRefrigeration MT |
| Frequency [Hz] () | 60 |
| Packing format () | Single pack |
| Speed Platform () | Fixed-speed |
| Brand technique () | Reciprocating compressor |
| Capacity control () | Fixed speed |
| Liquid injection () | No |
| Packing quantity () | 1 |
| Voltage 60Hz [V] () | 115 V |
| Total height [mm] () | 197 mm |
| Configuration code () | Single |
| Oil quantity [cm3] () | 300 cm³ |
| Swept volume [cm3] () | 7.27 cm³ |
| Free gas volume [cm3] () | 2280 cm³ |
| Voltage 60Hz [V] [Max] () | 127 V |
| Product Name Description () | Reciprocating compressor NF |
| Height from baseplate [mm] () | 191 mm |
| No. of phases (compressor) () | 1 |
| Compressor power supply [V] () | 115/1/60 |
| Process connection comments () | Rubber plug |
| Process connection material () | Copper |
| Start capacitor capacitance () | 320 µF |
| Suction connection material () | Copper |
| Discharge connection comments () | Rubber plug |
| Discharge connection material () | Copper |
| Process connection angle [°] () | 25 ° |
| Refrigerant charge [kg] [Max] () | 0.4 kg |
| Suction connection angle [°] () | 15 ° |
| Rotational speed at 60Hz [rpm] () | 3600 rpm |
| Discharge connection angle [°] () | 35 ° |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Process connection diameter [mm] () | 6.5 mm |
| Suction connection diameter [mm] () | 8.2 mm |
| Discharge connection diameter [mm] () | 6.5 mm |
| Winding temperature stat [°C] [Max] () | 125 °C |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 60Hz [V] () | 98 V |
| High value of voltage range at 60Hz [V] () | 140 V |
| Low value of nominal voltage at 60Hz [V] () | 115 V |
| High value of nominal voltage at 60Hz [V] () | 127 V |
| Winding temperature short term [°C] [Max] () | 135 °C |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Refrigerants: R404A, Segment usage: Refrigeration LT; Refrigeration MT, Compressor power supply [V]: 115/1/60
