195B0275

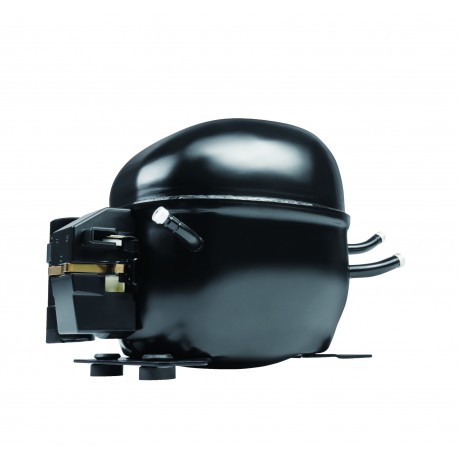

195B0275 DANFOSS REFRIGERATION KIT NL10MFX 220V-240V
$0.00USD
3519 in stock
Key Specifications
Oil:POE
RLA:2.8 To
Color:Black
Phase:One
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Oil | POE |
| RLA | 2.8 To |
| Color | Black |
| Phase | One |
| Economizer | Not |
| Net weight | 11.44 Kg |
| Technology | Alternative |
| Description | Service Kit for compressor NR10MF |
| LRA HST [A] | 16.6 To |
| LRA LST [A] | 13 To |
| Applications | MBP |
| Gross weight | 11.44 Kg |
| Model number | NL10MF |
| Refrigerants | R134a |
| Amount of oil | 320 cm3 |
| Frequency [Hz] | 50/60 |
| Oil charge [L] | 320 L |
| Use of segment | Refrigeration MT |
| Capacity control | Fixed speed |
| Number of scheme | Eight thousand two hundred forty eight |
| Packaging format | Individual package |
| Type designation | Individual package |
| Units of packing | One |
| Height total [mm] | 203 mm |
| Configuration code | Individual |
| Swept volume [cm3] | 10.09 cm3 |
| Voltage, 50 Hz [V] | 220 V |
| Voltage, 60 Hz [V] | 208 V |
| Type of motherboard | EU, small |
| Technique of the brand | Reciprocating compressors, type |
| Capacity of capacitor B | 125 uF |
| Or packaging individual | Code individual package |
| Voltage 60 Hz [V] [max.] | 230 V |
| Volume of free gas [cm3] | 2360 cm3 |
| Merged Type of engine and | CSIRRSIR |
| Voltage, 50 Hz [V] [max.] | 240 V |
| Current connection HST [A] | 16.6 To |
| Current connection LST [A] | Seventeen |
| Height from baseplate [mm] | 197 mm |
| Start capacitor capacitance | 125 µF |
| Merged Approval standard and | CCCCE en 60335-2-34 with Annex AAUL |
| N. º of phases (compressor) | One |
| Refrigerant charge [kg] [Max] | 0.6 kg |
| Rotation speed at 50 Hz [rpm] | 2900 rpm |
| Rotation speed at 60 Hz [rpm] | 3500 rpm |
| Angle of the connection process | 25 ° |
| Energy level of the application | Compressor MBP standard |
| Process connection diameter [mm] | 6.2 mm |
| Comments on the process connection | Cover of The |
| Comments on the suction connection | Cover of The |
| Diameter discharge connection [mm] | 6.2 mm |
| Material of the process connection | Steel-plated Cu |
| Material of the suction connection | Steel treated with copper |
| Angle of the connection suction [°] | 15 ° |
| Comments on the discharge connection | Cover of The |
| Material of the discharge connection | Steel-plated Cu |
| Angle of the discharge connection [°] | 35 ° |
| Low value of voltage range at 50hz [V] | 187 V |
| Diameter of the suction connection [mm] | 8.2 mm |
| High value of voltage range at 50hz [V] | 254 V |
| Winding temperature, stable [°C] [Max] | 125 °C |
| High value of nominal voltage at 50 Hz [V] | 230 V |
| Low value of the rated voltage at 50 Hz [V] | 208 V |
| Low value of the voltage range at 60 Hz [V] | 187 V |
| High value of the voltage range at 60 Hz [V] | 254 V |
| Low value of the nominal voltage at 60 Hz [V] | 208 V |
| High value of the nominal voltage at 60 Hz [V] | 230 V |
| Temperature of the winding, the short-term [°C] [Max] | 135 °C |
| Resistance of the primary winding for compressors in single-phase [Ohm] | 6.1 Ohm |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] | 17.5 Ohm |
