195B0221

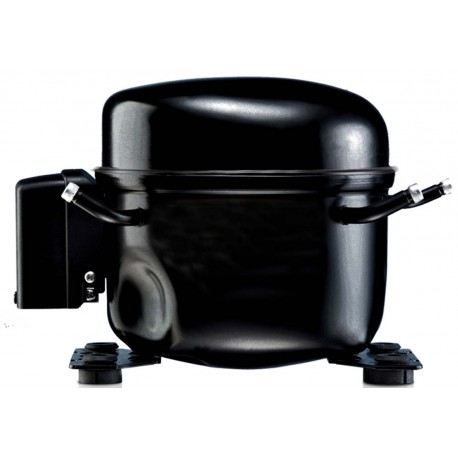

195B0221 DANFOSS REFRIGERATION KIT TLS5FK COMPRESSOR 220/50Hz R134a
$0.00USD
4442 in stock
Key Specifications
EAN ():5702424662462
RLA ():1.0 A
Type ():TLS5
Phase ():1
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702424662462 |
| RLA () | 1.0 A |
| Type () | TLS5 |
| Phase () | 1 |
| Colour () | Black |
| Family () | TL |
| Volume () | 15.375 Liter |
| Approval () | CE |
| Oil type () | POE |
| Economizer () | No |
| Motor type () | CSIRRSIR |
| Net weight () | 8.092 Kg |
| Technology () | Reciprocating |
| Description () | TLS5F |
| LRA HST [A] () | 5.8 A |
| LRA LST [A] () | 4.8 A |
| Gross weight () | 8.092 Kg |
| Model number () | TLS5F |
| Product group () | Hermetic compressors |
| Drawing number () | 8244 |
| Frequency [Hz] () | 50 |
| Oil charge [L] () | 180 L |
| Packing format () | Single pack |
| Brand technique () | Reciprocating compressor |
| Capacity control () | Fixed speed |
| Voltage 50Hz [V] () | 220 V |
| Approval standard () | EN 60335-2-34 with Annex AA |
| Total height [mm] () | 173 mm |
| Configuration code () | Single |
| Oil quantity [cm3] () | 180 cm³ |
| Swept volume [cm3] () | 5.08 cm³ |
| Free gas volume [cm3] () | 1790 cm³ |
| Cut in current HST [A] () | 5.8 A |
| Cut in current LST [A] () | 8.7 A |
| Voltage 50Hz [V] [Max] () | 240 V |
| Capacity of capacitor B () | 60 uF |
| Packing type single pack () | Single pack code number |
| Product Name Description () | Reciprocating compressor TL |
| Height from baseplate [mm] () | 169 mm |
| No. of phases (compressor) () | 1 |
| Process connection comments () | Al-cap |
| Process connection material () | Cu-plated steel |
| Suction connection material () | Cu-plated steel |
| Discharge connection comments () | Al-cap |
| Discharge connection material () | Cu-plated steel |
| Process connection angle [°] () | 32 ° |
| Refrigerant charge [kg] [Max] () | 0.4 kg |
| Suction connection angle [°] () | 30 ° |
| Rotational speed at 50Hz [rpm] () | 2900 rpm |
| Discharge connection angle [°] () | 28 ° |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Process connection diameter [mm] () | 6.2 mm |
| Suction connection diameter [mm] () | 6.2 mm |
| Discharge connection diameter [mm] () | 5 mm |
| Winding temperature stat [°C] [Max] () | 125 °C |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 50Hz [V] () | 198 V |
| High value of voltage range at 50Hz [V] () | 254 V |
| Low value of nominal voltage at 50Hz [V] () | 220 V |
| High value of nominal voltage at 50Hz [V] () | 230 V |
| Winding temperature short term [°C] [Max] () | 135 °C |
| Main winding resistance for single-phase compressors [Ohm] () | 16 |
| Main winding resistance for single-phase compressors alt [Ohm] () | 18.2 |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] () | 15.1 |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] () | 17 |
Product Description
Reciprocating compressor, TLS5F
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Refrigerants: R134a, Segment usage: Refrigeration LT
