195B0094

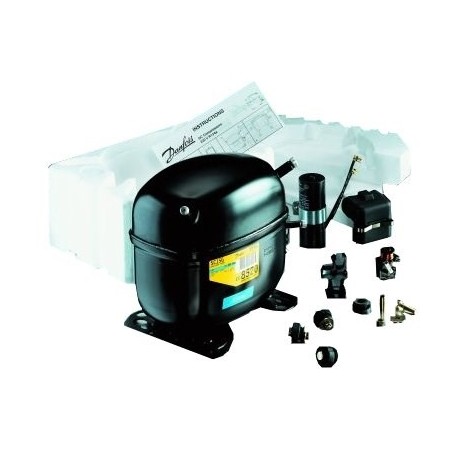

195B0094 DANFOSS REFRIGERATION KIT NL11F COMPRESSOR 220-240V
$0.00USD
3596 in stock
Key Specifications
RLA:1.8 A
Phase:1
Colour:Black
Oil type:POE
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| RLA | 1.8 A |
| Phase | 1 |
| Colour | Black |
| Oil type | POE |
| Type Code | NL |
| • Cover | 103N2010 |
| • Relay | 117U6002 |
| Economizer | No |
| Motor type | CSIR; RSIR |
| Net weight | 11.52 Kg |
| Technology | Reciprocating |
| LRA HST [A] | 10.4 |
| LRA LST [A] | 9.2 |
| Refrigerant | R134a |
| Applications | LBP |
| Gross weight | 11.52 Kg |
| Model number | NL11F |
| Segment usage | Refrigeration LT |
| Frequency [Hz] | 50 |
| Oil charge [L] | 320 |
| Packing format | Single pack |
| • Compressor | 105G6903 |
| Base plate type | EU small |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Packing quantity | 1 |
| Type designation | Compressor |
| Voltage 50Hz [V] | 220 |
| Approval standard | CE EN 60335-2-34 with Annex AA |
| Configuration code | Single |
| Oil quantity [cm3] | 320 |
| Swept volume [cm3] | 11.15 |
| Embalagem individual | Single pack code number |
| Free gas volume [cm3] | 2360 |
| • Cover Description | COVER TL,NL,FR-220V |
| • Relay Description | Starting Relay NL/SC |
| Cut in current HST [A] | 10.4 |
| Cut in current LST [A] | 13.6 |
| Voltage 50Hz [V] [Max] | 240 |
| • Starting capacitor | 117U5015 |
| Capacity of capacitor B | 80 uF |
| Application energy level | Standard compressor |
| • Mounting accessories | 118-1917 |
| No. of phases (compressor) | 1 |
| • Compressor Description | NL11F |
| Process connection comments | Al-cap |
| Process connection material | Cu-plated steel |
| Start capacitor capacitance | 80 |
| Suction connection comments | Al-cap |
| Suction connection material | Cu-plated steel |
| Discharge connection comments | Al-cap |
| Discharge connection material | Cu-plated steel |
| Process connection angle [°] | 90 |
| Refrigerant charge [kg] [Max] | 0.4 |
| Suction connection angle [°] | 90 |
| Rotational speed at 50Hz [rpm] | 2900 |
| Rotational speed at 60Hz [rpm] | 0 |
| Discharge connection angle [°] | 0 |
| Process connection diameter [mm] | 6.2 |
| Suction connection diameter [mm] | 6.2 |
| Discharge connection diameter [mm] | 5 |
| • Starting capacitor Description | START CAPACITOR 80µF, 220V - FR,NL |
| Winding temperature stat [°C] [Max] | 125 |
| • Mounting accessories Description | MOUNTING ACCESSORIES |
| Low value of voltage range at 50Hz [V] | 198 |
| Low value of voltage range at 60Hz [V] | 0 |
| High value of voltage range at 50Hz [V] | 254 |
| High value of voltage range at 60Hz [V] | 0 |
| Low value of nominal voltage at 50Hz [V] | 220 |
| Low value of nominal voltage at 60Hz [V] | 0 |
| High value of nominal voltage at 50Hz [V] | 230 |
| High value of nominal voltage at 60Hz [V] | 0 |
| Winding temperature short term [°C] [Max] | 135 |
| Main winding resistance for single-phase compressors [Ohm] | 8.2 |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] | 14.7 |
