In Stock Hot Product
195B0059

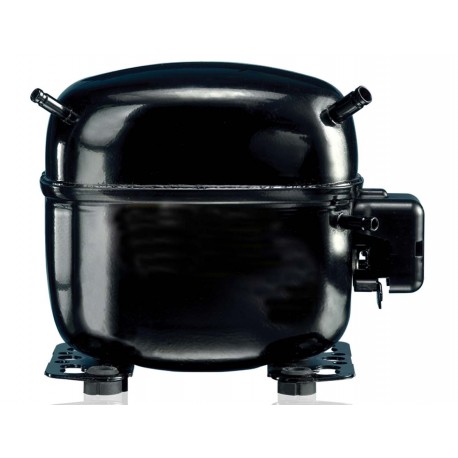

195B0059 DANFOSS REFRIGERATION SC18GX 220V 50HZ R 134A
$0.00USD
3602 in stock
Key Specifications
EAN ():5702424535032
RLA ():3.90 A
Type ():SC18
Phase ():1
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702424535032 |
| RLA () | 3.90 A |
| Type () | SC18 |
| Phase () | 1 |
| Colour () | Black |
| Family () | SC |
| Volume () | 18 Liter |
| Oil type () | POE |
| Economizer () | No |
| Motor type () | CSIR |
| Net weight () | 14.296 Kg |
| Technology () | Reciprocating |
| Width [mm] () | 151 mm |
| Description () | SC18G |
| LRA HST [A] () | 20.4 A |
| Length [mm] () | 255 mm |
| Applications () | HBPLBPMBP |
| Gross weight () | 14.296 Kg |
| Model number () | SC18G |
| Refrigerants () | R134a |
| Product group () | Hermetic compressors |
| Segment usage () | Refrigeration HTRefrigeration LTRefrigeration MT |
| Frequency [Hz] () | 50/60 |
| Packing format () | Single pack |
| Brand technique () | Reciprocating compressor |
| Capacity control () | Fixed speed |
| LRA HST 60Hz [A] () | 20.4 A |
| Liquid injection () | No |
| Packing quantity () | 1 |
| Voltage 50Hz [V] () | 220 V |
| Voltage 60Hz [V] () | 220 V |
| Total height [mm] () | 209 mm |
| Configuration code () | Single |
| Oil quantity [cm3] () | 550 cm³ |
| Swept volume [cm3] () | 17.69 cm³ |
| Free gas volume [cm3] () | 1460 cm³ |
| Cut in current HST [A] () | 20.4 A |
| Voltage 50Hz [V] [Max] () | 240 V |
| Voltage 60Hz [V] [Max] () | 240 V |
| Product Name Description () | Reciprocating compressor SC |
| Height from baseplate [mm] () | 203 mm |
| No. of phases (compressor) () | 1 |
| Compressor power supply [V] () | 220/1/50 220/1/60 |
| Process connection comments () | Rubber plug |
| Process connection material () | Copper |
| Start capacitor capacitance () | 80 µF |
| Suction connection material () | Copper |
| Discharge connection comments () | Rubber plug |
| Discharge connection material () | Copper |
| Process connection angle [°] () | 37 ° |
| Refrigerant charge [kg] [Max] () | 1.3 kg |
| Suction connection angle [°] () | 37 ° |
| Process connection height [mm] () | 183 mm |
| Rotational speed at 50Hz [rpm] () | 3000 rpm |
| Rotational speed at 60Hz [rpm] () | 3600 rpm |
| Suction connection height [mm] () | 183 mm |
| Discharge connection angle [°] () | 37 ° |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Discharge connection height [mm] () | 100 mm |
| Process connection diameter [mm] () | 6.2 mm |
| Suction connection diameter [mm] () | 10.2 mm |
| Discharge connection diameter [mm] () | 6.2 mm |
| Winding temperature stat [°C] [Max] () | 125 °C |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 50Hz [V] () | 187 V |
| Low value of voltage range at 60Hz [V] () | 187 V |
| High value of voltage range at 50Hz [V] () | 255 V |
| High value of voltage range at 60Hz [V] () | 255 V |
| Low value of nominal voltage at 50Hz [V] () | 220 V |
| Low value of nominal voltage at 60Hz [V] () | 220 V |
| High value of nominal voltage at 50Hz [V] () | 240 V |
| High value of nominal voltage at 60Hz [V] () | 240 V |
| Winding temperature short term [°C] [Max] () | 135 °C |
| Main winding resistance for single-phase compressors [Ohm] () | 3.7 |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] () | 13.7 |
Product Description
Reciprocating compressor, SC18G
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Refrigerants: R134a, Segment usage: Refrigeration LT; Refrigeration HT; Refrigeration MT, Compressor power supply [V]: 220/1/50 220/1/60
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
