In Stock Hot Product
187F9010

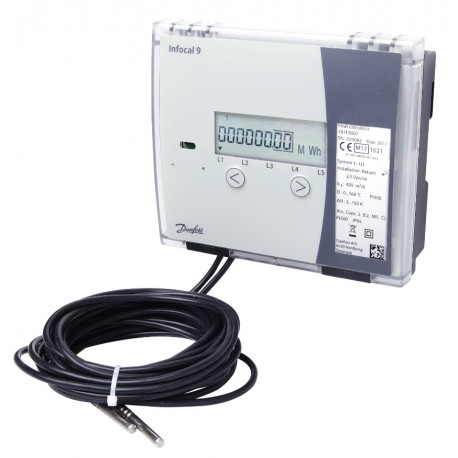

187F9010 DANFOSS HEATING INF9 DN600-1200 qp2150-10000 R 3.6V M-Bu
$0.00USD
4869 in stock
Key Specifications
EAN ():5702428985734
Type ():Infocal 9
Volume ():3.621 Liter
Net weight ():0.7 Kilogram
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428985734 |
| Type () | Infocal 9 |
| Volume () | 3.621 Liter |
| Net weight () | 0.7 Kilogram |
| Application () | Heating and cooling |
| Battery qty () | 1 |
| Description () | Energy calculator |
| Energy unit () | MWh |
| Display type () | LCD |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 0.7 Kilogram |
| Installation () | Return |
| Ambient class () | E2/M1 |
| Product group () | Energy meters |
| For flow meter () | SONO3500 CT |
| In scope of WEEE () | Yes |
| qp [m³/h] [Max] () | 18000 m³/h |
| qp [m³/h] [Min] () | 2150 m³/h |
| Accuracy standard () | Class 2 to EN1434 |
| Approval authority () | MID |
| EU RoHS compliance () | Out of scope |
| UK RoHS compliance () | Out of scope |
| Weight per battery () | 50 g |
| Diameter [mm] [Max] () | 1200 mm |
| Diameter [mm] [Min] () | 600 mm |
| IP protection class () | IP65 |
| Supply voltage type () | battery D-cell |
| Battery type or Name () | D Lithium |
| China RoHS compliance () | Out of scope |
| Supply voltage [V] DC () | 4 V |
| Interface module slot 1 () | M-bus module |
| Battery lifetime [Years] () | 12 yr |
| Integrated communication () | 2 pulse input |
| Temperature sensors type () | Pt 500 |
| 1 Primary battery weight Kg () | 0.05 |
| Log storage duration [Month] () | 36 mo |
| Pulse value volume [l/pulse] () | 100 l/pulse |
| Ambient humidity [% RH] [Max] () | 93 % |
| Media temperature [°C] [Max] () | 160 °C |
| Media temperature [°C] [Min] () | 0 °C |
| Temperature sensor length [mm] () | 5 mm |
| 1 Primary battery SUM weight Kg () | 0.05 |
| Ambient temperature [°C] [max] () | 55 °C |
| Ambient temperature [°C] [min] () | 5 °C |
| REACH Candidate List substances () | No |
| Temperature sensor diameter [mm] () | 5.2 mm |
| In scope of WEEE and contain batteries () | Yes |
Product Description
Energy meters, Infocal 9, 600 mm - 1200 mm, qp [m³/h]: 2150.0 - 18000.0, Heating and cooling, battery D-cell, M-bus module
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Energy calculator
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
