In Stock Hot Product
187F3740

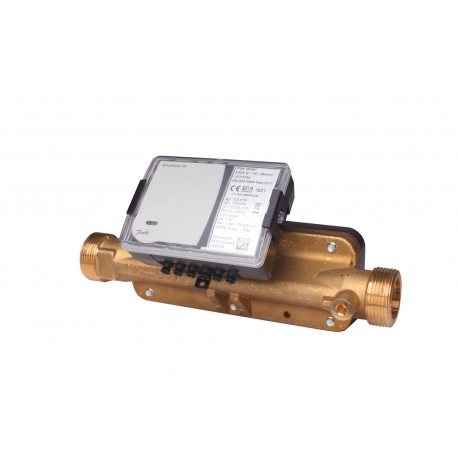

187F3740 DANFOSS HEATING SonoSensor 30 DN32 qp6.0 260fl PN25 1.2m
$0.00USD
4061 in stock
Key Specifications
EAN ():5702428548878
Type ():SonoSensor 30
Volume ():8.138 Liter
Net weight ():5 Kilogram
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428548878 |
| Type () | SonoSensor 30 |
| Volume () | 8.138 Liter |
| Net weight () | 5 Kilogram |
| qp [m³/h] () | 6 m³/h |
| Application () | Cooling |
| Battery qty () | 1 |
| Description () | Flow sensor for commercial and residential applications |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 6.385 Kilogram |
| Diameter [mm] () | 32 mm |
| Label product () | Yes |
| Product group () | Energy meters |
| In scope of WEEE () | Yes |
| SCIP dossier no. () | e74fe5e7-b0fd-408e-9222-97440bb49b42 |
| EU RoHS compliance () | Out of scope |
| UK RoHS compliance () | Out of scope |
| Weight per battery () | 19 g |
| Supply voltage type () | Battery 1 A-cell |
| Battery type or Name () | AA Lithium |
| China RoHS compliance () | Out of scope |
| Supply voltage [V] DC () | 4 V |
| Integrated communication () | 2 pulse output |
| SCIP dossier product name () | SonoSensor 30 DNxx |
| 1 Primary battery weight Kg () | 0.019 |
| 1 Primary battery SUM weight Kg () | 0.019 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | Yes |
Product Description
Energy meters, SonoSensor 30, 32 mm, qp [m³/h]: 6.0, Cooling, Battery 1 A-cell, 2 pulse output
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Flow sensor for commercial and residential applications
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
