In Stock Hot Product
187F3700

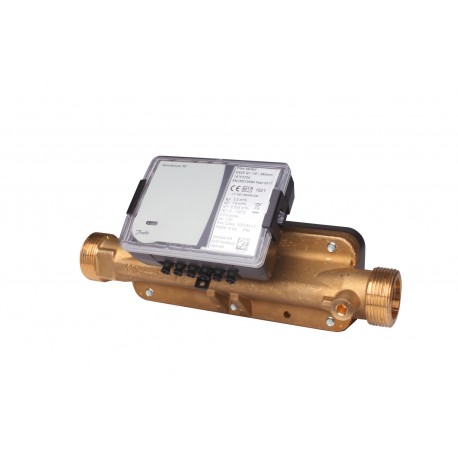

187F3700 DANFOSS HEATING SonoSensor 30 DN15 qp0.6 110 PN16 1.2m
$0.00USD
3926 in stock
Key Specifications
EAN ():5702428002387
Type ():SonoSensor 30
Media ():Water quality with pH 7 to 9.5
Volume ():2.94 Liter
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428002387 |
| Type () | SonoSensor 30 |
| Media () | Water quality with pH 7 to 9.5 |
| Volume () | 2.94 Liter |
| Net weight () | 0.56 Kilogram |
| qp [m³/h] () | 0.6 m³/h |
| Application () | Heating |
| Battery qty () | 1 |
| Description () | Flow sensor for commercial and residential applications |
| Length [mm] () | 110 mm |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 0.677 Kilogram |
| Ambient class () | E2/M1 |
| Diameter [mm] () | 15 mm |
| Dynamic range () | 1:100 |
| Label product () | Yes |
| Product group () | Energy meters |
| Connection size () | G 3/4 |
| Connection types () | Thread |
| In scope of WEEE () | Yes |
| SCIP dossier no. () | f621ee47-2ac7-4f20-a32f-0c0be0de145b |
| Accuracy standard () | Class 2 to EN1434 |
| Approval authority () | MID |
| EU RoHS compliance () | Out of scope |
| UK RoHS compliance () | Out of scope |
| Weight per battery () | 19 g |
| IP protection class () | IP65 |
| Supply voltage type () | Battery 1 A-cell |
| Battery type or Name () | AA Lithium |
| China RoHS compliance () | Out of scope |
| Supply voltage [V] DC () | 4 V |
| Pressure nominal [bar] () | 16 bar |
| Battery lifetime [Years] () | 12 yr |
| Flow measuring principle () | Ultrasonic |
| Integrated communication () | 2 pulse output |
| SCIP dossier product name () | SonoSensor 30 |
| 1 Primary battery weight Kg () | 0.019 |
| Pulse value volume [l/pulse] () | 1 l/pulse |
| Ambient humidity [% RH] [Max] () | 93 % |
| Media temperature [°C] [Max] () | 130 °C |
| Media temperature [°C] [Min] () | 5 °C |
| 1 Primary battery SUM weight Kg () | 0.019 |
| Ambient temperature [°C] [max] () | 55 °C |
| Ambient temperature [°C] [min] () | 5 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | Yes |
| Media temporary overload temperature [°C] () | 150 °C |
| Cable length between calculator and flow sensor [m] () | 1.2 m |
Product Description
Energy meters, SonoSensor 30, 15 mm, qp [m³/h]: 0.6, Heating, Battery 1 A-cell, 2 pulse output
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Flow sensor for commercial and residential applications
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
