In Stock Hot Product
178G9907

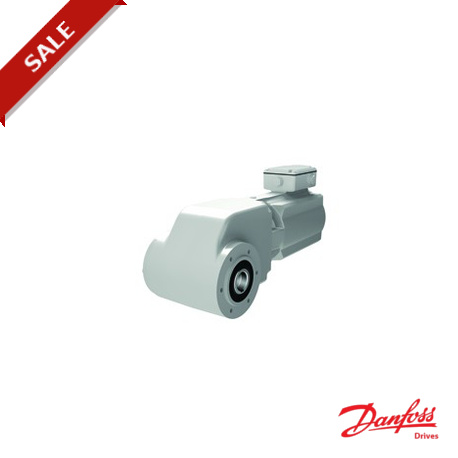

178G9907 DANFOSS DRIVES VLT OneGearDrive Standard, max 2.2 KW (V210),31.13, 40 mm, Stainless steel,Without C..
$0.00USD
4227 in stock
Key Specifications
Size:(2) V210
Brake:(BXXX) Without brake
Vendor:Factory D
CSA / UL:(X) Without CSA/UL
Supplier Information
DANFOSS DRIVES
Products: 56123
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Size | (2) V210 |
| Brake | (BXXX) Without brake |
| Vendor | Factory D |
| CSA / UL | (X) Without CSA/UL |
| Gear Tipo | (K) Bevel Gear |
| Gear Ratio | (31K13) 31.13 |
| Lubricants | (H1) Food grade oil |
| Motor Size | (L06) max 2.2 KW (V210) |
| Reserved A | (X) Reserved A |
| Reserved B | (X) Reserved B |
| Reserved C | Reserved C |
| Reserved RX | (RX) Reserved X |
| Product Group | VLT OneGearDrive |
| Vendor Region | Southern Europe |
| Characteristic | Value |
| RAL Color Code | (9010) Standard white |
| Product Catalog | Global (Standard) |
| Product Variant | (S) Standard |
| Surface Coating | (S) Standard |
| Tipocode Part 1 | OGDSK231K131402L06RXTB1P3 |
| Tipocode Part 2 | S9010H1BXXXXXXX |
| Motor Connection | (TB) Terminal Box |
| Output Shaft Size | (40) 40 mm |
| Connector Position | (1) Top |
| Material Net Weight | 0.000 |
| Output Shaft Design | (1) Hollow shaft |
| Installation Position | (P3) Vertical, motor up |
| Material Gross Weight | 0.000 |
| Output Shaft Material | (2) Stainless steel |
| Calculated Gross Weight | 26.000 |
| Calculated Net Weight [kg] | 25.000 |
