1771-CARDEDGE18/D25F

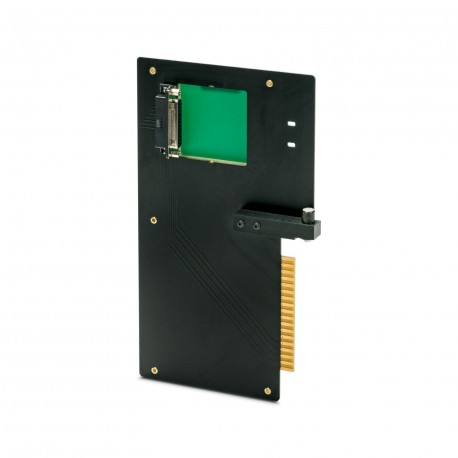

1771-CARDEDGE18/D25F 2908758 PHOENIX CONTACT Interface card
$0.00USD
4467 in stock
Key Specifications
GTIN:4055626365749
Note:Made to Order (non-returnable)
Orderkey:2908758
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626365749 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2908758 |
| Packing unit | 1 pc |
| Country of origin | US (United States) |
| Custom tariff number | 85366990 |
| (Supported controller) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Connection name (General) | PCB edge contact |
| Depth (Key Commercial Data) | 21.3 mm |
| Width (Key Commercial Data) | 254 mm |
| Height (Key Commercial Data) | 153.2 mm |
| Number of positions (General) | 18 |
| China RoHS (Supported controller) | Environmentally Friendly Use Period = 50 |
| (Connection data for connection 2) | 1771-QI |
| Status display (Ambient conditions) | No |
| Weight per Piece (excluding packing) | 0.000 g |
| Number of positions (Ambient conditions) | 18 |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 70 °C |
| Controller (Connection data for connection 2) | Allen-Bradley®1771 (PLC5) |
| Max. perm. operating voltage (Ambient conditions) | max. 125 V AC/DC |
| Connection name (Connection data for connection 1) | Controller level |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 70 °C |
| Connection method (Connection data for connection 1) | D-SUB-25 female connector |
| Max. perm. current (per branch) (Ambient conditions) | 2 A |
| - suitable I/O card (Connection data for connection 2) | 1771-IL |
| Number of positions (Connection data for connection 1) | 25 |
| Number of connections (Connection data for connection 1) | 1 |
Product Description
Allen-Bradley® PLC-5 Migration Module for Conversion of 1771 I/O Connections from an 18-Pin Pre-Wired Pivoting Module (1771-WE, 1771-WF, or 1771-WI) to a 25-Pin D-SUB Female Connector
