In Stock Hot Product
1700517

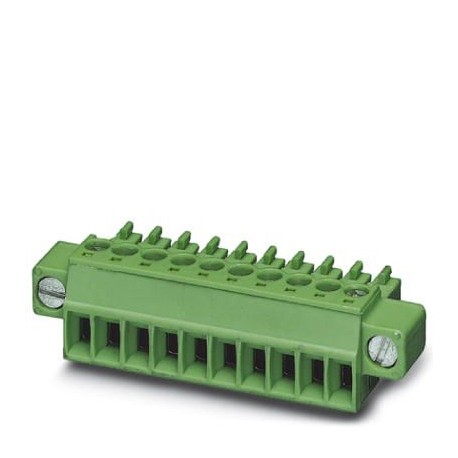

MC 1,5/ 9-STF-3,5 MURR BD:13-5 SO 1700517 PHOENIX CONTACT Printed-circuit board connector
$0.00USD
3585 in stock
Key Specifications
GTIN:4046356490580
Note:Made to Order (non-returnable)
Orderkey:1700517
Packing unit:50 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356490580 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1700517 |
| Packing unit | 50 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| Minimum order quantity | 50 pc |
| Pitch (Key Commercial Data) | 3.5 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Connection method (Dimensions) | Screw connection with tension sleeve |
| Range of articles (Dimensions) | MC 1,5/..-STF |
| Nominal current IN (Dimensions) | 8 A |
| Number of positions (Dimensions) | 9 |
| Dimension a (Key Commercial Data) | 28 mm |
| Width [ w ] (Key Commercial Data) | 41.8 mm |
| Height [ h ] (Key Commercial Data) | 11.1 mm |
| Length [ l ] (Key Commercial Data) | 16.1 mm |
| Nominal cross section (Dimensions) | 1.5 mm² |
| Rated voltage (III/3) (Dimensions) | 160 V |
| Weight per Piece (excluding packing) | 6.850 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Conductor cross section AWG max. (General) | 16 |
| Conductor cross section AWG min. (General) | 28 |
| Conductor cross section solid max. (General) | 1.5 mm² |
| Conductor cross section solid min. (General) | 0.14 mm² |
| Connection in acc. with standard (Dimensions) | EN-VDE |
| Conductor cross section flexible max. (General) | 1.5 mm² |
| Conductor cross section flexible min. (General) | 0.14 mm² |
| Connection in acc. with standard (Connection data) | EN-VDE |
| 2 conductors with same cross section, solid max. (General) | 0.5 mm² |
| 2 conductors with same cross section, solid min. (General) | 0.08 mm² |
| 2 conductors with same cross section, stranded max. (General) | 0.75 mm² |
| 2 conductors with same cross section, stranded min. (General) | 0.08 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (General) | 0.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (General) | 0.25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (General) | 1.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (General) | 0.25 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (General) | 0.34 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (General) | 0.25 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (General) | 0.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (General) | 0.5 mm² |
Product Description
Connector for printed circuit board, nominal section: 1.5 mm², color: green, rated current: 8 A, dimensioning voltage (III/2): 160 V, surface contacts: Tin, contact type: Connection female, Number of
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
