In Stock Hot Product
15-5BDGHC16

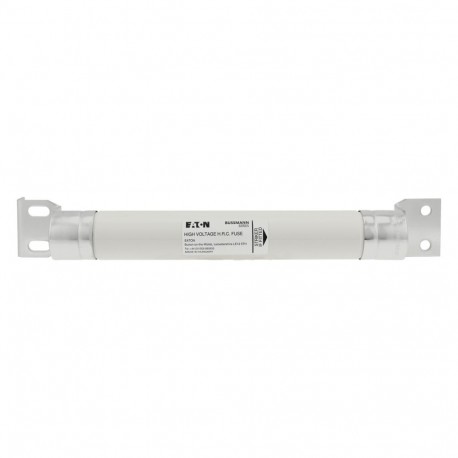

15-5BDGHC16 15.5BDGHC16 15.5KV 16AMP 2" AIR FUSE 15.5BDGHC16 EATON ELECTRIC Air fuse-link, medium voltage, 1..
$0.00USD
3177 in stock
Key Specifications
Feature Name:Feature Value
Length (EF001438):461 mm
Diameter (EF000551):51 mm
Standard (EF009322):British Standard
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Length (EF001438) | 461 mm |
| Diameter (EF000551) | 51 mm |
| Standard (EF009322) | British Standard |
| Application (EF000041) | Primary side transformer protection |
| Voltage type (EF000187) | AC |
| With striker (EF008175) | Yes |
| Rated current (EF000227) | 16 A |
| Rated voltage (EF000228) | 15.5 kV |
| Rated frequency (EF001663) | 50 Hz |
| Breaking capacity (EF005617) | 20 kA |
| Installation technique (EF001474) | Air |
| Release characteristic (EF000889) | Other |
| Utilization category according to IEC 60269 (EF002572) | Other |
| Performance category according to IEC 60282-1 (EF012539) | Back-up |
Product Description
cartridge fuse Air, MT, 16 A, AC 15.5 kV, 461 x 50.8 mm, back-up, BS, with striker
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
