148H6016

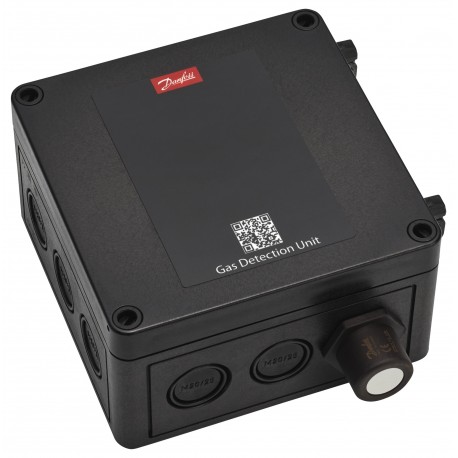

148H6016 DANFOSS REFRIGERATION Gas detection unit
$0.00USD
3671 in stock
Key Specifications
EAN ():5714279918632
Type ():Premium
Volume ():3.806 Liter
Net weight ():0.46 Kilogram
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5714279918632 |
| Type () | Premium |
| Volume () | 3.806 Liter |
| Net weight () | 0.46 Kilogram |
| Gross weight () | 0.59 Kilogram |
| Refrigerants () | R717 |
| Product group () | Sensors |
| Sensor 1 type () | Electrochemical |
| Packing format () | Multi pack |
| Parts included () | Cable glandComplete unitMounting kitCalibration certificate |
| EU RoHS compliance () | Out of scope |
| Response delay [s] () | 0 s |
| UK RoHS compliance () | Out of scope |
| China RoHS compliance () | Out of scope |
| Power consumption [A] () | 0.21 A |
| Product Name Description () | Gas detection unit |
| Quantity per packing format () | 10 pc |
| Supply voltage [V] DC [max] () | 29 V |
| Supply voltage [V] DC [min] () | 19 V |
| Gas detecting sensor version () | Premium |
| Alarmlimits low [ppm] sensor1 () | 500 ppm |
| Temperature range [°C] [max] () | 50 °C |
| Temperature range [°C] [min] () | -30 °C |
| Temperature range [°F] [max] () | 122 °F |
| Temperature range [°F] [min] () | -22 °F |
| Alarmlimits high [ppm] sensor1 () | 900 ppm |
| REACH Candidate List substances () | No |
| Relative humidity (RH) [%] [max] () | 90 % |
| Relative humidity (RH) [%] [min] () | 15 % |
| Refrig. range [ppm] sensor1 [max] () | 1000 ppm |
| Refrig. range [ppm] sensor1 [min] () | 0 ppm |
| In scope of WEEE and contain batteries () | No |
Product Description
GDA Gas detection unit EC 1000 Premium.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Gas detecting sensor version: Premium, Sensor 1 type: Electrochemical, Refrig. range [ppm] sensor1: 0 - 1000
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
