In Stock Hot Product
148H5005

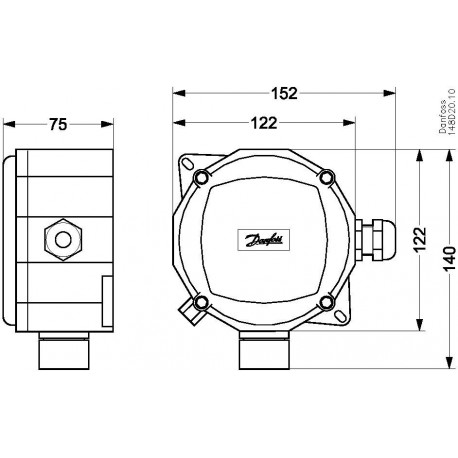

148H5005 DANFOSS REFRIGERATION Gas detecting sensor
$0.00USD
3106 in stock
Key Specifications
EAN:5702428185721
Net weight:0.86 Kg
Sensor type:Electrochemical
Gross weight:0.86 Kg
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428185721 |
| Net weight | 0.86 Kg |
| Sensor type | Electrochemical |
| Gross weight | 0.86 Kg |
| Product name | Gas detecting sensor |
| Product type | GDA EC 100 |
| Refrigerants | R717 |
| Product Group | Sensors |
| Frequency [Hz] | 50/60 Hz |
| Packing format | Single pack |
| Response delay [s] | 0 " |
| Enclosure rating IP | IP65 |
| Product description | Gas Detection Sensor |
| Power consumption [A] | 0.23 A |
| Power consumption [W] | 4 W |
| Alarm limits low [ppm] | 25 ppm |
| Alarm limits high [ppm] | 35 ppm |
| Temperature application | Low temperature |
| Enclosure rating Nema (~) | 4X |
| Quantity per packing format | 1 pc |
| Supply voltage [V] AC [Max] | 24 V |
| Supply voltage [V] AC [Min] | 12 V |
| Supply voltage [V] DC [Max] | 24 V |
| Supply voltage [V] DC [Min] | 12 V |
| Temperature range [°C] [Max] | 40 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 104 °F |
| Temperature range [°F] [Min] | -40 °F |
| Refrigerants range [ppm] [Max] | 100 ppm |
| Refrigerants range [ppm] [Min] | 0 ppm |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
