148H3274

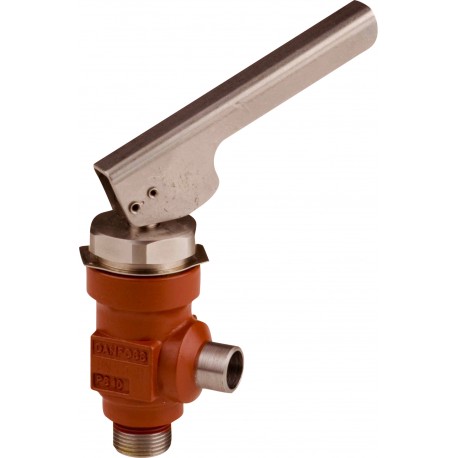

148H3274 DANFOSS REFRIGERATION Hand operated regulating valve
$0.00USD
3541 in stock
Key Specifications
EAN ():5702428173636
Type ():QDV 15
Volume ():5.933 Liter
Approval ():EACLLC CDC TYSK
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428173636 |
| Type () | QDV 15 |
| Volume () | 5.933 Liter |
| Approval () | EACLLC CDC TYSK |
| Direction () | Angleway |
| Net weight () | 1.3 Kg |
| Fluid Group () | 12 |
| Serviceable () | QDV spare parts |
| Colour Paint () | Reddish brown |
| Gross weight () | 1.59 Kg |
| PED category () | Art. 4, par. 3 |
| Refrigerants () | R717 |
| Body material () | Steel |
| Product group () | Shut-off and regulating valves |
| Packing format () | Single pack |
| EU RoHS compliance () | Yes with exemptions |
| Connection material () | Steel |
| Connection standard () | ANSI/ASME B1.20.1 |
| Further information () | Back pressure dependent |
| Product accessories () | QDV accessories |
| Product description () | Quick Drain Valve |
| Relief delta p [bar] () | 16 bar |
| Inlet connection type () | NPT |
| Relief delta p [psig] () | 232 psig |
| Outlet connection type () | NPT |
| Inlet Internal/External () | Internal |
| Flow direction indicator () | Embossed 1-way arrow |
| Outlet Internal/External () | Internal |
| Product Name Description () | Quick closing oil drain valve |
| Inlet connection size [in] () | 3/4 |
| Max. Working Pressure [bar] () | 40 bar |
| Outlet connection size [in] () | 3/4 |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 580 psig |
| Temperature range [°C] [max] () | 150 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 302 °F |
| Temperature range [°F] [min] () | -58 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
QDV 3/4" FPT DN20
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: NPT, Outlet connection type: NPT
