148H3171

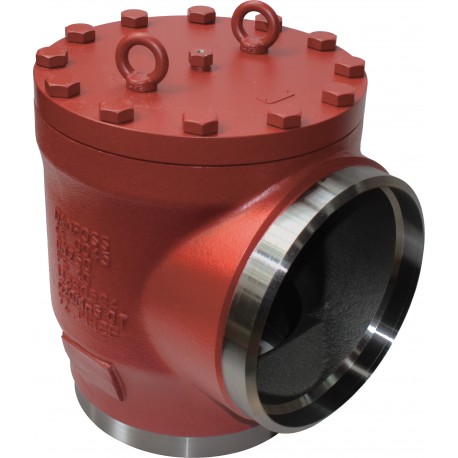

148H3171 DANFOSS REFRIGERATION Strainer housing
$0.00USD
3919 in stock
Key Specifications
EAN ():5702428241366
Type ():FIA 250
Volume ():620.16 Liter
Approval ():CEUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428241366 |
| Type () | FIA 250 |
| Volume () | 620.16 Liter |
| Approval () | CEUKCA |
| Direction () | Angleway |
| Equipment () | Cover |
| Net weight () | 103.499 Kg |
| Fluid Group () | 12 |
| Colour Paint () | Reddish brown |
| Gross weight () | 103.5 Kg |
| PED category () | III |
| Refrigerants () | R113R114R125R134aR152aR22R23R236faR32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR452BR454BR454CR455AR502R513AR503R413AR227eaR454AR507AR1150R1233zd(E)R1234yfR1234ze(E)R1270R1336mzz(Z)R170R245faR290R442AR447BR463AR512AR513BR515AR515BR516AR600R600aR717R744RE170R508B |
| Product group () | Strainers |
| Packing format () | Single pack |
| Connection type () | Butt weld |
| EU RoHS compliance () | No - out of scope |
| Parts Program name () | FIA |
| Connection material () | Steel |
| Connection standard () | EN 10220 |
| Product description () | Filter housing |
| Connection size [in] () | 10 in |
| Connection size [mm] () | 250 mm |
| Product Name Description () | Strainer housing |
| Cv value [gal/min] 38 plain () | 3741.12 gal/min |
| Cv value [gal/min] 72 plain () | 3561.48 gal/min |
| Kv value [m3/h] µ150 plain () | 784.5 m³/h |
| Kv value [m3/h] µ250 plain () | 808.9 m³/h |
| Kv value [m3/h] µ500 plain () | 849.7 m³/h |
| Max. Working Pressure [bar] () | 40 bar |
| Quantity per packing format () | 1 pc |
| Cv value [gal/min] 100 plain () | 3454.05 gal/min |
| Max. Working Pressure [psig] () | 580 psig |
| Temperature range [°C] [max] () | 150 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | 302 °F |
| Temperature range [°F] [min] () | -76 °F |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
FIA 250 D ANG FILTER HOUSING
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Connection material: Steel, Max. Working Pressure [bar]: 40.0
