In Stock Hot Product
148H3138

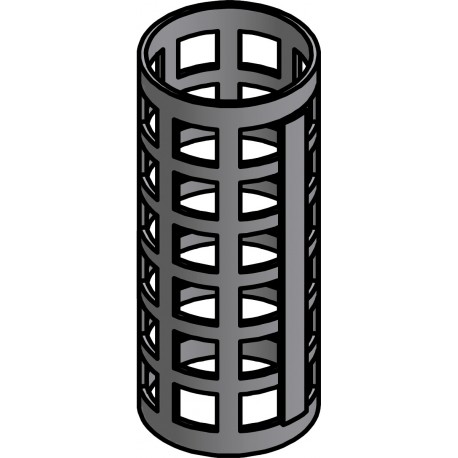

148H3138 DANFOSS REFRIGERATION Strainer insert
$0.00USD
4688 in stock
Key Specifications
EAN ():5702428190855
Type ():FIA INS
Brand ():SVL Flexline
Volume ():0.141 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428190855 |
| Type () | FIA INS |
| Brand () | SVL Flexline |
| Volume () | 0.141 Liter |
| Net weight () | 0.04 Kilogram |
| Serviceable () | SVL Flexline spare parts |
| Gross weight () | 0.058 Kilogram |
| Refrigerants () | R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R513AR600R600aR717R744RE170R507AR1150R245faR413AR442AR447BR452BR454AR454CR463AR512AR513BR515AR515BR516AR508B |
| Product group () | Strainers |
| Filter version () | Standard version |
| Free space [%] () | 51 % |
| Packing format () | Multi pack |
| Used for product () | FIA 50FIA SS 50 |
| Screen area [cm2] () | 87 cm² |
| Screen area [in2] () | 13.5 in² |
| EU RoHS compliance () | Out of scope |
| Parts Program name () | FIA |
| UK RoHS compliance () | Out of scope |
| Product accessories () | SVL Flexline accessories |
| Product description () | Filter element |
| Wire thickness [in] () | 0.004 in |
| Wire thickness [mm] () | 0.1 mm |
| Weave fineness [µm] () | 250 µm |
| China RoHS compliance () | Out of scope |
| Weave fineness [Mesh] () | 72 Mesh |
| Product Name Description () | Strainer insert |
| Quantity per packing format () | 20 pc |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
FIA-INS50 250my FILTER ELEMENT
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Weave fineness [µm]: 250
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
