148G3713

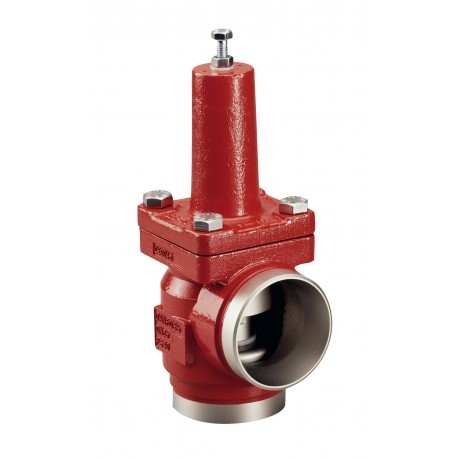

148G3713 DANFOSS REFRIGERATION Pressure control valve
$0.00USD
4675 in stock
Key Specifications
EAN:5702428345897
Approval:CE
Category:II
Direction:Angleway
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428345897 |
| Approval | CE |
| Category | II |
| Direction | Angleway |
| Net weight | 5.83 Kg |
| Fluid Group | I |
| Gross weight | 5.95 Kg |
| Product name | Pressure control valve |
| Product type | KDC 65 D 3 |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R507R717R744 |
| Product Group | Press. and temp. regul. valves |
| Packing format | Single pack |
| Connection type | Butt weld |
| Connection standard | EN 10220 |
| Product description | Multifunction compressor valve |
| Connection size [in] | 2 1/2 in |
| Connection size [mm] | 65 mm |
| Kv Fully open [m3/h] | 78 m3/h |
| Cv Fully open [gal/min] | 90 gal/min |
| Differential pressure [bar] | 3 bar |
| Differential pressure [psi] | 43.5 psi |
| Max. Working Pressure [bar] | 40 bar |
| Quantity per packing format | 1 pc |
| Max. Working Pressure [psig] | 580 psig |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -58 °F |
Product Description
KDC-065-D-3
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
