148G3606

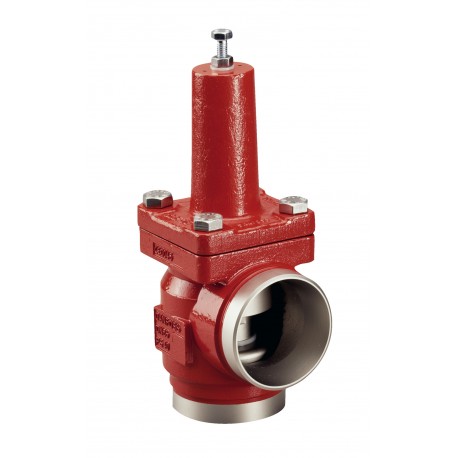

148G3606 DANFOSS REFRIGERATION Pressure control valve
$0.00USD
3806 in stock
Key Specifications
EAN ():5702428279567
Type ():KDC 200 D 2
Volume ():246.24 Liter
Approval ():CEUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428279567 |
| Type () | KDC 200 D 2 |
| Volume () | 246.24 Liter |
| Approval () | CEUKCA |
| Direction () | Angleway |
| Net weight () | 80.5 Kg |
| Fluid Group () | 1 |
| Gross weight () | 95.2 Kg |
| PED category () | III |
| Refrigerants () | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R507A |
| Product group () | Press. and temp. regul. valves |
| Packing format () | Single pack |
| Connection type () | Butt weld |
| Connection standard () | EN 10220 |
| Product description () | Multifunction compressor valve |
| Connection size [in] () | 8 in |
| Connection size [mm] () | 200 mm |
| Kv Fully open [m3/h] () | 757 m³/h |
| Cv Fully open [gal/min] () | 878 gal/min |
| Product Name Description () | Pressure control valve |
| Inlet connection size [mm] () | 200 mm |
| Differential pressure [bar] () | 2 bar |
| Differential pressure [psi] () | 29 psi |
| Max. Working Pressure [bar] () | 40 bar |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 580 psig |
| Temperature range [°C] [max] () | 150 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 302 °F |
| Temperature range [°F] [min] () | -58 °F |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
KDC-200-D-2
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection size [mm]: 200.0, Max. Working Pressure [bar]: 40.0
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
