148F4228

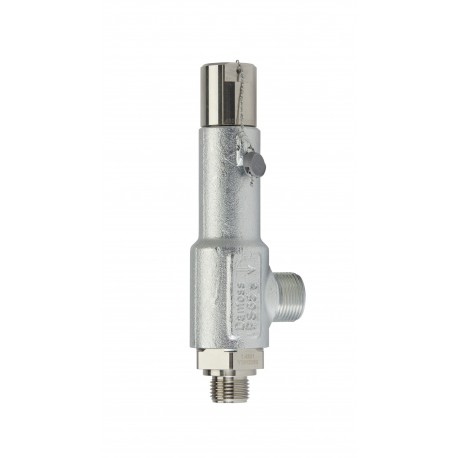

148F4228 DANFOSS REFRIGERATION SFA 10H T 228 Safety valve
$429.77USD
59 in stock
Key Specifications
EAN ():5702424057954
Type ():SFA 10H
Volume ():1.244 Liter
Approval ():EAC
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702424057954 |
| Type () | SFA 10H |
| Volume () | 1.244 Liter |
| Approval () | EAC |
| Direction () | Angleway |
| Equipment () | Cap |
| Lift [mm] () | 2.3 mm |
| Net weight () | 1.09 Kilogram |
| Fluid Group () | 1 |
| Gross weight () | 1.239 Kilogram |
| PED category () | IV |
| Refrigerants () | R744R410A |
| Product group () | Safety relief valves |
| Packing format () | Single pack |
| Connection type () | G |
| Flow area [in2] () | 0.056 in² |
| Flow area [mm2] () | 36.3 mm² |
| Surface coating () | Zn (TLP) |
| Approval standard () | ISO 4126-1 |
| EU RoHS compliance () | Out of scope |
| Flow diameter [in] () | 0.268 in |
| Flow diameter [mm] () | 6.8 mm |
| UK RoHS compliance () | Out of scope |
| Connection standard () | ISO 228-1 |
| Connection size [in] () | 3/8 in |
| Connection size [mm] () | 10 mm |
| Pressure certificate () | Danfoss certificate included |
| China RoHS compliance () | Out of scope |
| Certified Coef of Disc () | 0.85 kg |
| Pressure setting [bar] () | 28 bar |
| Pressure setting [psig] () | 406 psig |
| Product Name Description () | Safety relief valve |
| Inlet connection size [in] () | 1/2 in |
| Inlet connection size [mm] () | 10 mm |
| Max. Working Pressure [bar] () | 65 bar |
| Outlet connection size [in] () | 3/4 in |
| Outlet connection size [mm] () | 15 mm |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 943 psig |
| Temperature range [°C] [max] () | 100 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 212 °F |
| Temperature range [°F] [min] () | -58 °F |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
Safety relief valve, SFA 10H, G, 28 bar
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Pressure setting [bar]: 28, Connection type: G, Inlet connection size [in]: 1/2 in, Outlet connection size [in]: 3/4 in, Pressure certificate: Danfoss certificate included
