In Stock Hot Product
148F3319

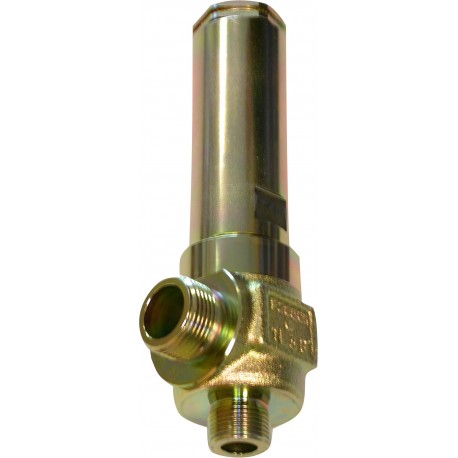

148F3319 DANFOSS REFRIGERATION Safety relief valve
$0.00USD
3544 in stock
Key Specifications
EAN:5702428193757
Approval:CEEAC
Category:IV
Direction:Angleway
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428193757 |
| Approval | CEEAC |
| Category | IV |
| Direction | Angleway |
| Net weight | 1.93 Kg |
| Fluid Group | I |
| Gross weight | 1.98 Kg |
| Product name | Safety relief valve |
| Product type | SFA 15 |
| Refrigerants | R134aR170R22R290R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R507R600R600aR717R744 |
| Product Group | Safety relief valves |
| Packing format | Single pack |
| Connection type | G |
| Flow area [in2] | 0.206 in2 |
| Flow area [mm2] | 133 mm2 |
| Nominal diameter | DN < 15 |
| Flow diameter [in] | 0.512 in |
| Flow diameter [mm] | 13 mm |
| Connection standard | ISO 228-1 |
| Product description | Safety Relief Valve |
| Connection size [in] | 1/2 in |
| Connection size [mm] | 15 mm |
| Pressure certificate | TÜV certificate included |
| Certified Coef of Disc | 0.73 kg |
| Pressure setting [bar] | 19 bar |
| Pressure setting [psig] | 276 psig |
| Inlet connection size [in] | 3/4 |
| Outlet connection size [in] | 1 |
| Quantity per packing format | 1 pc |
| Connection Internal/External | External |
| Temperature range [°C] [Max] | 100 °C |
| Temperature range [°C] [Min] | -30 °C |
| Temperature range [°F] [Max] | 212 °F |
| Temperature range [°F] [Min] | -22 °F |
Product Description
SFA 15 T 319 SAFETY VALVE 19 BAR
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
