148F3220

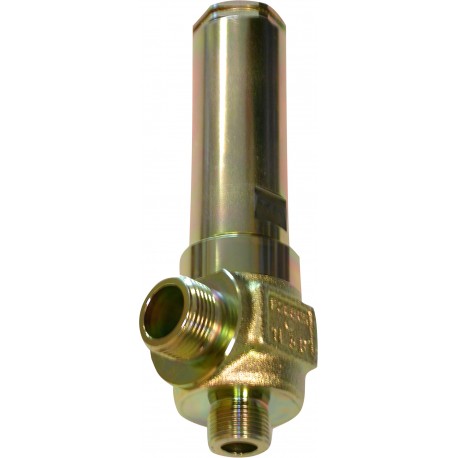

148F3220 DANFOSS REFRIGERATION Safety relief valve
$0.00USD
3878 in stock
Key Specifications
EAN ():5702428194068
Type ():SFA 15
Volume ():1.333 Liter
Approval ():CEEACTSUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428194068 |
| Type () | SFA 15 |
| Volume () | 1.333 Liter |
| Approval () | CEEACTSUKCA |
| Comments () | 0 |
| Direction () | Angleway |
| Lift [mm] () | 4.8 mm |
| Net weight () | 1.926 Kg |
| Fluid Group () | 1 |
| Gross weight () | 1.966 Kg |
| PED category () | IV |
| Refrigerants () | R134aR170R22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R600R600aR717R744R507AR1234yfR1234ze(E)R125R152aR227eaR236faR245faR290R32R407HR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR452CR454AR454BR454CR455AR463AR512AR513AR513BR515AR515BR516A |
| Product group () | Safety relief valves |
| Packing format () | Single pack |
| Connection type () | G |
| Flow area [in2] () | 0.206 in² |
| Flow area [mm2] () | 133 mm² |
| Nominal diameter () | DN15 |
| Approval file name () | TÜV.SV.19-1104.13.D/G.0,73.p |
| EU RoHS compliance () | No - out of scope |
| Flow diameter [in] () | 0.512 in |
| Flow diameter [mm] () | 13 mm |
| Connection standard () | ISO 228-1 |
| Product description () | Safety Relief Valve |
| Connection size [in] () | 1/2 in |
| Connection size [mm] () | 15 mm |
| Pressure certificate () | Danfoss certificate included |
| Certified Coef of Disc () | 0.73 kg |
| Pressure setting [bar] () | 20 bar |
| Pressure setting [psig] () | 290 psig |
| Product Name Description () | Safety relief valve |
| Inlet connection size [in] () | 3/4 |
| Outlet connection size [in] () | 1 |
| Quantity per packing format () | 1 pc |
| Connection Internal/External () | External |
| Temperature range [°C] [max] () | 100 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 212 °F |
| Temperature range [°F] [min] () | -58 °F |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
SFA15 T 220 SAFETY VALVE 20 BAR
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Pressure setting [bar]: 20, Connection type: G, Inlet connection size [in]: 3/4, Outlet connection size [in]: 1, Pressure certificate: Danfoss certificate included
