In Stock Hot Product
148F3033

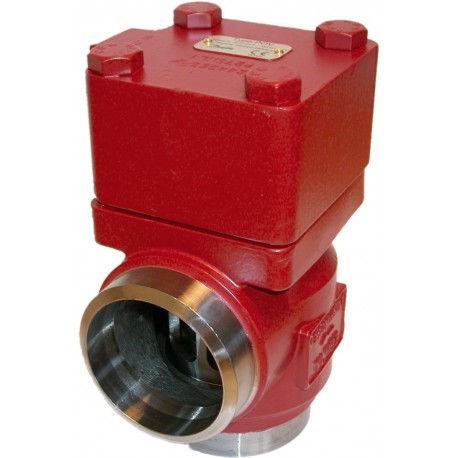

148F3033 DANFOSS REFRIGERATION Compressor overflow valve
$0.00USD
3588 in stock
Key Specifications
EAN ():5702428342827
Type ():POV 2150
Volume ():17.772 Liter
Approval ():CEEACLLC CDC TYSKUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428342827 |
| Type () | POV 2150 |
| Volume () | 17.772 Liter |
| Approval () | CEEACLLC CDC TYSKUKCA |
| Direction () | Angleway |
| Net weight () | 12.608 Kg |
| Fluid Group () | 1 |
| Gross weight () | 12.8 Kg |
| PED category () | II |
| Refrigerants () | R134aR170R22R290R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R600R600aR717R744R507AR1234yfR1234ze(E)R125R152aR227eaR236faR245faR32R407HR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR512AR513AR513BR515AR515BR516A |
| Product group () | Safety relief valves |
| Packing format () | Single pack |
| Connection type () | Butt weld |
| Flow area [in2] () | 4.24 in² |
| Flow area [mm2] () | 2734 mm² |
| EU RoHS compliance () | No - out of scope |
| Flow diameter [in] () | 2.32 in |
| Flow diameter [mm] () | 59 mm |
| Connection standard () | EN 10220 |
| Product description () | Pressure-operated pilot valve |
| Pressure certificate () | TÜV certificate included |
| Inlet connection type () | Butt weld DIN |
| Pressure setting [bar] () | 25 bar |
| Pressure setting [psig] () | 363 psig |
| Product Name Description () | Compressor overflow valve |
| Inlet connection size [in] () | 3 in |
| Inlet connection size [mm] () | 80 mm |
| Max. Working Pressure [bar] () | 40 bar |
| Outlet connection size [in] () | 3 in |
| Outlet connection size [mm] () | 80 mm |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 580 psig |
| Temperature range [°C] [max] () | 150 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 302 °F |
| Temperature range [°F] [min] () | -58 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Temp. range with POV [°C] [max] () | 150 °C |
| Temp. range with POV [°C] [min] () | -50 °C |
| Temp. range with POV [°F] [max] () | 302 °F |
| Temp. range with POV [°F] [min] () | -58 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
POV 2150 BUTT WELD, DIN DN80 ANG
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Butt weld DIN, Inlet connection size [mm]: 80.0, Outlet connection size [mm]: 80.0, Inlet connection size [in]: 3 in, Outlet connection size [in]: 3 in
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
