148B6844

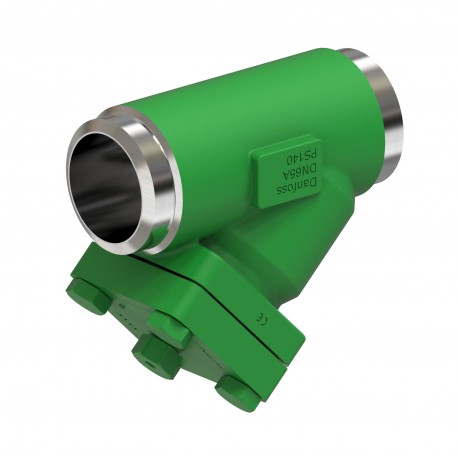

148B6844 DANFOSS REFRIGERATION FIA-140B Filter Housing 50 SA/SD STR.
$0.00USD
3897 in stock
Key Specifications
EAN ():5702424590642
Type ():FIA-140B 50
Brand ():SVL Flexline
Volume ():7.259 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702424590642 |
| Type () | FIA-140B 50 |
| Brand () | SVL Flexline |
| Volume () | 7.259 Liter |
| Approval () | CEEACUKCA |
| Direction () | Straightway |
| Equipment () | Cover |
| Net weight () | 6.36 Kg |
| Fluid Group () | 2 |
| Serviceable () | SVL Flexline spare parts |
| Colour Paint () | Green |
| Gross weight () | 6.853 Kg |
| PED category () | I |
| Refrigerants () | R744 |
| Product group () | Strainers |
| Valve version () | Standard version |
| Packing format () | Single pack |
| EU RoHS compliance () | No - out of scope |
| Connection material () | Steel |
| Connection standard () | ASME B16.50EN 1254-5 |
| Product accessories () | SVL Flexline accessories |
| Product description () | Filter housing |
| Inlet connection type () | Brazed |
| Outlet connection type () | Brazed |
| Flow direction indicator () | Embossed 1-way arrow |
| Product Name Description () | Strainer housing |
| Inlet connection size [in] () | 2 1/8 in |
| Inlet connection size [mm] () | 54 mm |
| Cv value [gal/min] 38 plain () | 169.07 gal/min |
| Cv value [gal/min] 72 plain () | 160.26 gal/min |
| Kv value [m3/h] µ150 plain () | 35.1 m³/h |
| Kv value [m3/h] µ250 plain () | 36.4 m³/h |
| Kv value [m3/h] µ500 plain () | 38.4 m³/h |
| Max. Working Pressure [bar] () | 140 bar |
| Outlet connection size [in] () | 2 1/8 in |
| Outlet connection size [mm] () | 54 mm |
| Quantity per packing format () | 1 pc |
| Cv value [gal/min] 100 plain () | 154.54 gal/min |
| Max. Working Pressure [psig] () | 2030 psig |
| Cv value [gal/min] 38 pleated () | 221.02 gal/min |
| Cv value [gal/min] 72 pleated () | 209.58 gal/min |
| Kv value [m3/h] µ150 pleated () | 45.9 m³/h |
| Kv value [m3/h] µ250 pleated () | 47.6 m³/h |
| Kv value [m3/h] µ500 pleated () | 50.2 m³/h |
| Temperature range [°C] [max] () | 150 °C |
| Temperature range [°C] [min] () | -40 °C |
| Temperature range [°F] [max] () | 302 °F |
| Temperature range [°F] [min] () | -40 °F |
| Cv value [gal/min] 100 pleated () | 202.09 gal/min |
| In scope of WEEE and contain batteries () | No |
Product Description
Strainers, FIA-140B 50
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Connection material: Steel, Inlet connection type: Brazed, Max. Working Pressure [bar]: 140.0
