In Stock Hot Product
148B6819

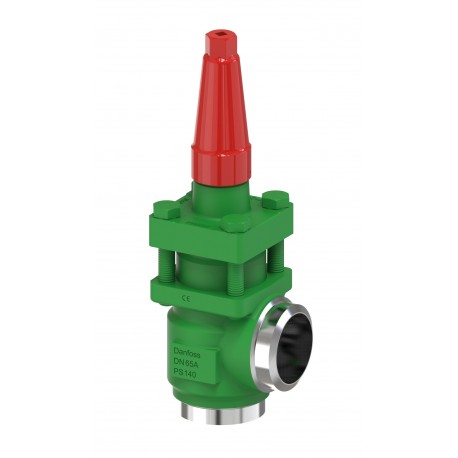

148B6819 DANFOSS REFRIGERATION SVA-140B Shut Off Valve 65 A ANG
$0.00USD
4920 in stock
Key Specifications
EAN ():5702424589745
Neck ():Standard
Type ():SVA-140B 65
Brand ():SVL Flexline
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702424589745 |
| Neck () | Standard |
| Type () | SVA-140B 65 |
| Brand () | SVL Flexline |
| Volume () | 12.933 Liter |
| Approval () | CEUKCA |
| Direction () | Angleway |
| Equipment () | Cap |
| Net weight () | 7.2 Kg |
| Fluid Group () | 2 |
| Serviceable () | SVL Flexline spare parts |
| Colour Paint () | Green |
| Gross weight () | 8.598 Kg |
| PED category () | I |
| Refrigerants () | R744 |
| Body material () | Steel |
| MOPD[bar/psi] () | 110BAR/1595.4PSI |
| Product group () | Shut-off and regulating valves |
| Valve version () | Standard version |
| Flow direction () | Single-flow |
| Packing format () | Single pack |
| Kv value [m³/h] () | 103 m³/h |
| Cv value [gal/min] () | 119.068 gal/min |
| EU RoHS compliance () | No - out of scope |
| Connection material () | Steel |
| Connection standard () | ANSIB36.10 SCH80 |
| Product accessories () | SVL Flexline accessories |
| Product description () | Shut-off valve |
| Inlet connection type () | Butt weld |
| Outlet connection type () | Butt weld |
| Flow direction indicator () | Embossed 1-way arrow |
| Product Name Description () | Shut-off valve |
| Inlet connection size [in] () | 2 1/2 in |
| Max. Working Pressure [bar] () | 140 bar |
| Outlet connection size [in] () | 2 1/2 in |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 2030 psig |
| Temperature range [°C] [max] () | 150 °C |
| Temperature range [°C] [min] () | -40 °C |
| Temperature range [°F] [max] () | 302 °F |
| Temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Shut-off valve, SVA-140B 65, Max. Working Pressure [bar]: 140.0, Cap
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Butt weld, Outlet connection type: Butt weld, Equipment: Cap
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
