148B6692

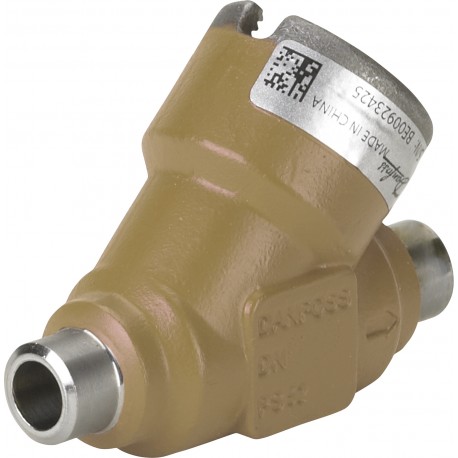

148B6692 DANFOSS REFRIGERATION Multifunction valve body, SVL 10
$0.00USD
4478 in stock
Key Specifications
EAN ():5702424045609
Type ():SVL 10
Brand ():SVL Flexline
Volume ():1.773 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702424045609 |
| Type () | SVL 10 |
| Brand () | SVL Flexline |
| Volume () | 1.773 Liter |
| Approval () | CEUKCA |
| Direction () | Straightway |
| Net weight () | 0.25 Kilogram |
| Fluid Group () | 1 |
| Serviceable () | SVL Flexline spare parts |
| CE evaluated () | Yes |
| Gross weight () | 0.462 Kilogram |
| PED category () | Art. 3, par. 3 |
| Refrigerants () | R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R513AR600R600aR717R744RE170R507AR1150R245faR413AR442AR447BR452BR454AR454CR463AR512AR513BR515AR515BR516AR508B |
| Body material () | Steel |
| Product group () | Multifunction valves |
| Flow direction () | Bi-flow |
| Packing format () | Single pack |
| Used for product () | SVL 10 |
| EU RoHS compliance () | Out of scope |
| Parts Program name () | REG-SA /REG-SBSVA-S / SVA-L |
| UK RoHS compliance () | Out of scope |
| Connection material () | Steel |
| Connection standard () | ASME B 36.10M SCHEDULE 80 |
| Product accessories () | SVL Flexline accessories |
| Product description () | Valve house |
| China RoHS compliance () | Out of scope |
| Inlet connection type () | Butt weld |
| Outlet connection type () | Butt weld |
| Flow direction indicator () | Embossed 1-way arrow |
| Product Name Description () | Multifunction valve body |
| Inlet connection size [in] () | 3/8 in |
| Inlet connection size [mm] () | 10 mm |
| Max. Working Pressure [bar] () | 65 bar |
| Outlet connection size [in] () | 3/8 in |
| Outlet connection size [mm] () | 10 mm |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 943 psig |
| Temperature range [°C] [max] () | 150 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | 302 °F |
| Temperature range [°F] [min] () | -76 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
SVL 10 ANSIValve housing STR PS65
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Used for product: SVL 10
