148B6690

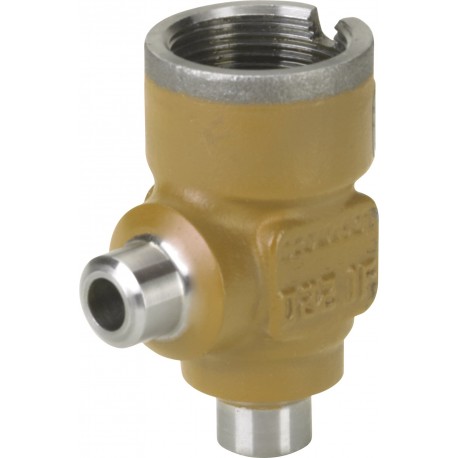

148B6690 DANFOSS REFRIGERATION Multifunction valve body
$0.00USD
4167 in stock
Key Specifications
Brand:SVL Flexline
Approval:CE
Category:Art. 3, par. 3
Direction:Angleway
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | SVL Flexline |
| Approval | CE |
| Category | Art. 3, par. 3 |
| Direction | Angleway |
| Net weight | 0.17 Kg |
| Fluid Group | I |
| Serviceable | SVL Flexline spare parts |
| Gross weight | 0.4 Kg |
| Product name | Multifunction valve body |
| Product type | SVL 10 |
| Refrigerants | R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R507R513AR600R600aR717R744RE170 |
| Body material | Steel |
| Product Group | Multifunction valves |
| Flow direction | Bi-flow |
| Packing format | Single pack |
| Parts Program name | REG-SA /REG-SBSVA-S / SVA-L |
| Connection material | Steel |
| Connection standard | EN 10220 |
| Product accessories | SVL Flexline accessories |
| Product description | Valve house |
| Product family name | REG angleSVA angle |
| Inlet connection type | Butt weld |
| Outlet connection type | Butt weld |
| System line application | Common liquid lineDischarge lineGas bypass lineHot gas defrost drain lineHot gas defrost lineLiquid feed lineLiquid lineLiquid line LTLiquid line MTMain hot gas defrost lineSuction lineSuction line LTSuction line MTWet return line |
| Flow direction indicator | Embossed 1-way arrow |
| Inlet connection size [in] | 3/8 in |
| Inlet connection size [mm] | 10 mm |
| Max. Working Pressure [bar] | 65 bar |
| Outlet connection size [in] | 3/8 in |
| Outlet connection size [mm] | 10 mm |
| Quantity per packing format | 1 pc |
| Max. Working Pressure [psig] | 943 psig |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -76 °F |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
