148B6653

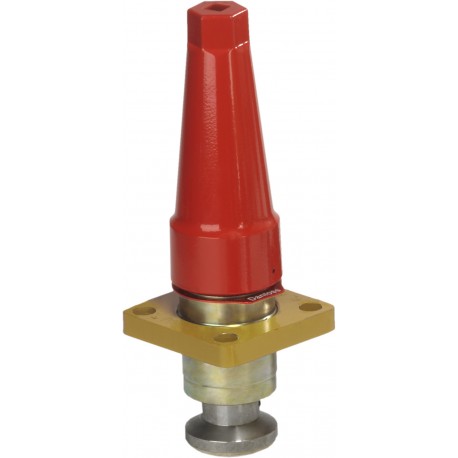

148B6653 DANFOSS REFRIGERATION Function module
$0.00USD
4564 in stock
Key Specifications
EAN ():5702428508193
Neck ():Standard
Type ():SVA-S 25-40
Brand ():SVL Flexline
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428508193 |
| Neck () | Standard |
| Type () | SVA-S 25-40 |
| Brand () | SVL Flexline |
| Volume () | 7.524 Liter |
| Equipment () | Cap |
| Net weight () | 1.635 Kg |
| Serviceable () | SVL Flexline spare parts |
| Gross weight () | 2.354 Kg |
| Refrigerants () | R113R114R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R513AR600R600aR717R744RE170R507AR1150R245faR413AR442AR447BR452BR454AR454CR463AR512AR513BR515AR515BR516AR508B |
| Product group () | Shut-off and regulating valves |
| Packing format () | Single pack |
| Type designation () | Top Complete |
| Used for product () | SVA-S 25SVA-S 32SVA-S 40 |
| EU RoHS compliance () | No - out of scope |
| Parts Program name () | SVA-S / SVA-L |
| Product accessories () | SVL Flexline accessories |
| Product Name Description () | Function module |
| Max. Working Pressure [bar] () | 65 bar |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 943 psig |
| Temperature range [°C] [max] () | 150 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | 302 °F |
| Temperature range [°F] [min] () | -76 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
SVA-S 25-40 top complete cap,PS65
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Used for product: SVA-S 32; SVA-S 40; SVA-S 25
