In Stock Hot Product
148B6627

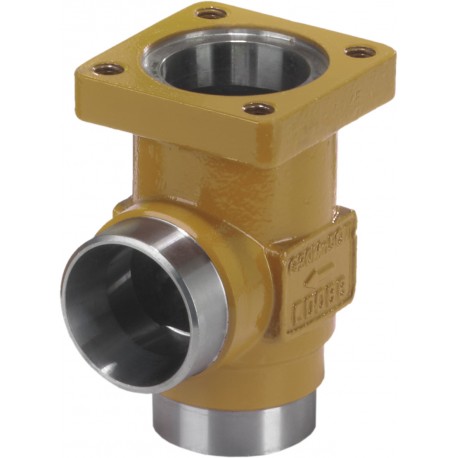

148B6627 DANFOSS REFRIGERATION Multifunction valve body
$0.00USD
3252 in stock
Key Specifications
EAN ():5702428507301
Type ():SVL 50
Brand ():SVL Flexline
Volume ():5.372 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428507301 |
| Type () | SVL 50 |
| Brand () | SVL Flexline |
| Volume () | 5.372 Liter |
| Approval () | CEUKCA |
| Direction () | Angleway |
| Net weight () | 1.84 Kilogram |
| Fluid Group () | 1 |
| Serviceable () | SVL Flexline spare parts |
| CE evaluated () | Yes |
| Gross weight () | 2.054 Kilogram |
| PED category () | II |
| Refrigerants () | R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R513AR600R600aR717R744RE170R507AR1150R245faR413AR442AR447BR452BR454AR454CR463AR512AR513BR515AR515BR516AR508B |
| Body material () | Steel |
| Product group () | Multifunction valves |
| Flow direction () | Bi-flow |
| Packing format () | Single pack |
| Used for product () | SVL 50 |
| EU RoHS compliance () | Out of scope |
| Parts Program name () | CHV-XFIASCA-XSVA-S / SVA-LREG-SA / REG-SB |
| UK RoHS compliance () | Out of scope |
| Connection material () | Steel |
| Connection standard () | EN 10220 |
| Product accessories () | SVL Flexline accessories |
| Product description () | Valve house |
| China RoHS compliance () | Out of scope |
| Inlet connection type () | Butt weld |
| Outlet connection type () | Butt weld |
| Flow direction indicator () | Embossed 1-way arrow |
| Product Name Description () | Multifunction valve body |
| Inlet connection size [in] () | 2 in |
| Inlet connection size [mm] () | 50 mm |
| Max. Working Pressure [bar] () | 65 bar |
| Outlet connection size [in] () | 2 in |
| Outlet connection size [mm] () | 50 mm |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 943 psig |
| Temperature range [°C] [max] () | 150 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | 302 °F |
| Temperature range [°F] [min] () | -76 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
SVL 50 DIN Valve housing ANG PS65
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Used for product: SVL 50
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
