148B6566

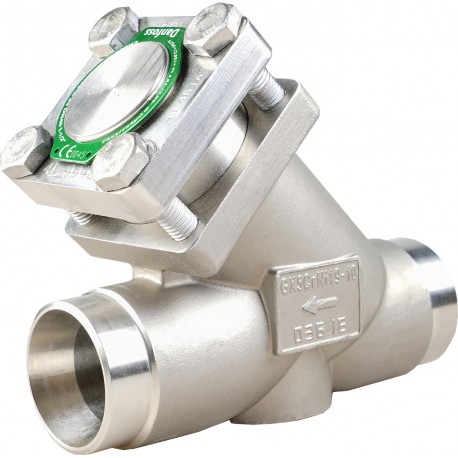

148B6566 DANFOSS REFRIGERATION CHV-X SS 40 D STR Check Valve PS52
$576.98USD
54 in stock
Key Specifications
EAN ():5702428978323
Type ():CHV-X SS 40
Volume ():5.372 Liter
Approval ():CEUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428978323 |
| Type () | CHV-X SS 40 |
| Volume () | 5.372 Liter |
| Approval () | CEUKCA |
| Direction () | Straightway |
| Net weight () | 2.598 Kg |
| Fluid Group () | 12 |
| Colour Paint () | Reddish brown |
| Gross weight () | 3.587 Kg |
| PED category () | II |
| Refrigerants () | R134aR22R290R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R600R600aR717R744R507A |
| Product group () | Check valves |
| Packing format () | Single pack |
| Connection type () | Butt weld |
| Kv value [m³/h] () | 21 m³/h |
| Cv value [gal/min] () | 34.8 gal/min |
| EU RoHS compliance () | No - out of scope |
| Connection material () | Stainless steel |
| Connection standard () | EN 10220 |
| Product description () | Check Valve |
| Connection size [in] () | 1 1/2 in |
| Connection size [mm] () | 40 mm |
| Product Name Description () | Check valve |
| Max. Working Pressure [bar] () | 52 bar |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 754 psig |
| Temperature range [°C] [max] () | 150 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | 302 °F |
| Temperature range [°F] [min] () | -76 °F |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
Check valve, CHV-X SS 40, Direction: Straightway, Connection standard: EN 10220
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Connection material: Stainless steel, Max. Working Pressure [bar]: 52.0
