148B6482

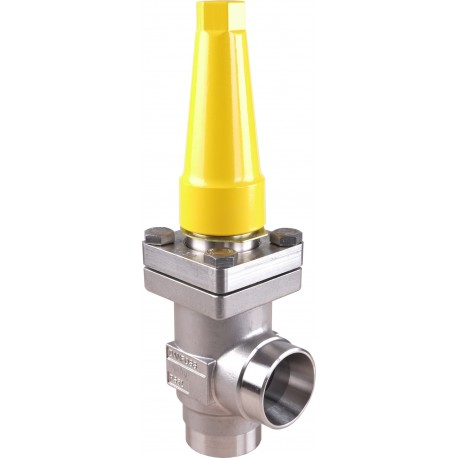

148B6482 DANFOSS REFRIGERATION REG-SA SS 15 A40 ANG Valve Cap PS52
$373.67USD
64 in stock
Key Specifications
EAN ():5702428990226
Type ():REG-SA SS 15
Volume ():4.081 Liter
Approval ():EACLLC CDC TYSK
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428990226 |
| Type () | REG-SA SS 15 |
| Volume () | 4.081 Liter |
| Approval () | EACLLC CDC TYSK |
| Direction () | Angleway |
| Equipment () | Cap |
| Net weight () | 1.575 Kg |
| Fluid Group () | 1 |
| Colour Paint () | Reddish brown |
| Gross weight () | 1.923 Kg |
| PED category () | Art. 3, par. 3 |
| Refrigerants () | R134aR22R290R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R600R600aR717R744R507AR1234yfR1234ze(E)R125R152aR227eaR236faR245faR32R407HR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR512AR513AR513BR515AR515BR516AR170R452C |
| Product group () | Shut-off and regulating valves |
| Valve version () | Standard version |
| Packing format () | Single pack |
| Kv value [m³/h] () | 1.5 m³/h |
| Cv value [gal/min] () | 1.75 gal/min |
| EU RoHS compliance () | No - out of scope |
| Parts Program name () | REG-SA / REG-SB |
| Connection material () | Stainless steel |
| Connection standard () | ASME B 36.19M SCHEDULE 40 |
| Product description () | Hand Regulating Valve |
| Inlet connection type () | Butt weld |
| Outlet connection type () | Butt weld |
| Product Name Description () | Hand operated regulating valve |
| Inlet connection size [in] () | 1/2 in |
| Inlet connection size [mm] () | 15 mm |
| Max. Working Pressure [bar] () | 52 bar |
| Outlet connection size [in] () | 1/2 in |
| Outlet connection size [mm] () | 15 mm |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 754 psig |
| Temperature range [°C] [max] () | 150 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | 302 °F |
| Temperature range [°F] [min] () | -76 °F |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
Hand operated regulating valve, REG-SA SS 15, Stainless steel
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Outlet connection size [mm]: 15.0, Inlet connection size [mm]: 15.0, Inlet connection type: Butt weld, Outlet connection type: Butt weld, Kv value [m³/h]: 1.500, Max. Working Pressure [bar]: 52.0
