In Stock Hot Product
148B6413

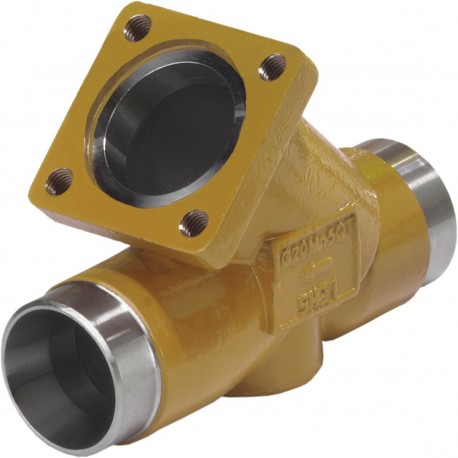

148B6413 DANFOSS REFRIGERATION Strainer housing
$0.00USD
4213 in stock
Key Specifications
EAN:5702428846172
Brand:SVL Flexline
Approval:CE
Category:II
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428846172 |
| Brand | SVL Flexline |
| Approval | CE |
| Category | II |
| Direction | Straightway |
| Equipment | Cover |
| Net weight | 5.48 Kg |
| Fluid Group | I |
| Serviceable | SVL Flexline spare parts |
| Colour Paint | Reddish brown |
| Gross weight | 5.91 Kg |
| Product name | Strainer housing |
| Product type | FIA 65 |
| Refrigerants | R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R507R513AR600R600aR717R744RE170 |
| Product Group | Strainers |
| Valve version | Standard version |
| Packing format | Single pack |
| Parts Program name | FIA |
| Connection material | Steel |
| Connection standard | EN 10220 |
| Product accessories | SVL Flexline accessories |
| Product description | Filter housing |
| Inlet connection type | Butt weld |
| Outlet connection type | Butt weld |
| Flow direction indicator | Embossed 1-way arrow |
| Inlet connection size [in] | 2 1/2 in |
| Inlet connection size [mm] | 65 mm |
| Cv value [gal/min] 38 plain | 203.41 gal/min |
| Cv value [gal/min] 72 plain | 194.61 gal/min |
| Kv value [m3/h] µ150 plain | 42.9 m3/h |
| Kv value [m3/h] µ250 plain | 44.2 m3/h |
| Kv value [m3/h] µ500 plain | 46.2 m3/h |
| Max. Working Pressure [bar] | 65 bar |
| Outlet connection size [in] | 2 1/2 in |
| Outlet connection size [mm] | 65 mm |
| Quantity per packing format | 1 pc |
| Cv value [gal/min] 100 plain | 188.88 gal/min |
| Max. Working Pressure [psig] | 943 psig |
| Cv value [gal/min] 38 pleated | 265.93 gal/min |
| Cv value [gal/min] 72 pleated | 254.49 gal/min |
| Kv value [m3/h] µ150 pleated | 56.1 m3/h |
| Kv value [m3/h] µ250 pleated | 57.8 m3/h |
| Kv value [m3/h] µ500 pleated | 60.4 m3/h |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -10 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | 14 °F |
| Cv value [gal/min] 100 pleated | 247 gal/min |
Product Description
FIA65 D STR Filter Housing PS65
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
