148B6411

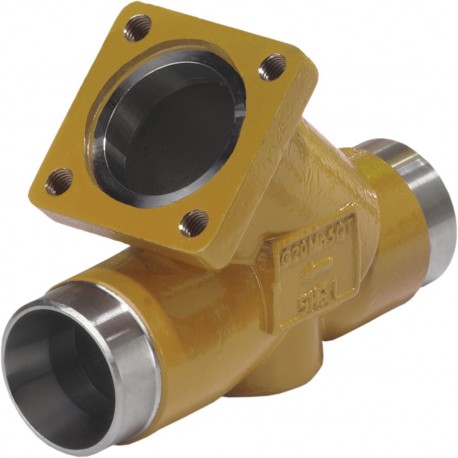

148B6411 DANFOSS REFRIGERATION Strainer housing
$0.00USD
4260 in stock
Key Specifications
EAN:5702428846158
Brand:SVL Flexline
Category:Art. 3, par. 3
Direction:Straightway
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428846158 |
| Brand | SVL Flexline |
| Category | Art. 3, par. 3 |
| Direction | Straightway |
| Equipment | Cover |
| Net weight | 2.68 Kg |
| Fluid Group | I |
| Serviceable | SVL Flexline spare parts |
| Colour Paint | Reddish brown |
| Gross weight | 2.97 Kg |
| Product name | Strainer housing |
| Product type | FIA 25 |
| Refrigerants | R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R507R513AR600R600aR717R744RE170 |
| Product Group | Strainers |
| Valve version | Standard version |
| Packing format | Single pack |
| Parts Program name | FIA |
| Connection material | Steel |
| Connection standard | EN 10220 |
| Product accessories | SVL Flexline accessories |
| Product description | Filter housing |
| Inlet connection type | Butt weld |
| Outlet connection type | Butt weld |
| Flow direction indicator | Embossed 1-way arrow |
| Inlet connection size [in] | 1 in |
| Inlet connection size [mm] | 25 mm |
| Cv value [gal/min] 38 plain | 51.07 gal/min |
| Cv value [gal/min] 72 plain | 47.11 gal/min |
| Kv value [m3/h] µ100 plain | 10.5 m3/h |
| Kv value [m3/h] µ150 plain | 10.7 m3/h |
| Kv value [m3/h] µ250 plain | 11.1 m3/h |
| Kv value [m3/h] µ500 plain | 11.6 m3/h |
| Max. Working Pressure [bar] | 65 bar |
| Outlet connection size [in] | 1 in |
| Outlet connection size [mm] | 25 mm |
| Quantity per packing format | 1 pc |
| Cv value [gal/min] 100 plain | 47.11 gal/min |
| Cv value [gal/min] 150 plain | 46.23 gal/min |
| Max. Working Pressure [psig] | 943 psig |
| Cv value [gal/min] 72 pleated | 63.84 gal/min |
| Kv value [m3/h] µ150 pleated | 13.8 m3/h |
| Kv value [m3/h] µ250 pleated | 14.5 m3/h |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -10 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | 14 °F |
| Cv value [gal/min] 100 pleated | 60.76 gal/min |
Product Description
FIA25 D STR Filter Housing PS65
