In Stock Hot Product
148B6007

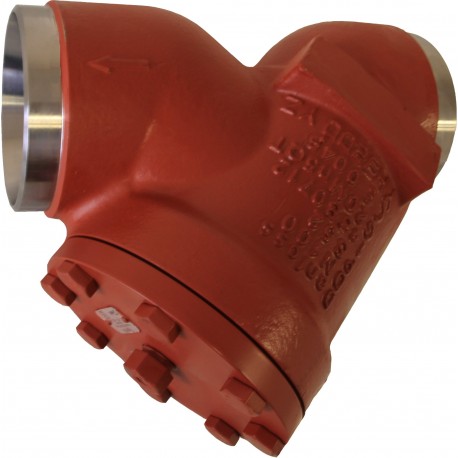

148B6007 DANFOSS REFRIGERATION Strainer housing
$0.00USD
3952 in stock
Key Specifications
EAN:5702428476676
Brand:SVL Flexline
Approval:CE
Category:II
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428476676 |
| Brand | SVL Flexline |
| Approval | CE |
| Category | II |
| Direction | Straightway |
| Equipment | Cover |
| Net weight | 15.32 Kg |
| Fluid Group | I |
| Serviceable | SVL Flexline spare parts |
| Colour Paint | Reddish brown |
| Gross weight | 20.04 Kg |
| Product name | Strainer housing |
| Product type | FIA 100 |
| Refrigerants | R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R507R513AR600R600aR717R744RE170 |
| Product Group | Strainers |
| Valve version | Standard version |
| Packing format | Single pack |
| Parts Program name | FIA |
| Connection material | Steel |
| Connection standard | EN 10220 |
| Product accessories | SVL Flexline accessories |
| Product description | Filter housing |
| Product family name | FIA straight plainFIA straight pleated |
| Inlet connection type | Butt weld |
| Outlet connection type | Butt weld |
| System line application | Common liquid lineDischarge lineGas bypass lineHot gas defrost drain lineHot gas defrost lineLiquid feed lineLiquid lineLiquid line LTLiquid line MTMain hot gas defrost lineSuction lineSuction line LTSuction line MTWet return line |
| Flow direction indicator | Embossed 1-way arrow |
| Inlet connection size [in] | 4 in |
| Inlet connection size [mm] | 100 mm |
| Cv value [gal/min] 38 plain | 592.63 gal/min |
| Cv value [gal/min] 72 plain | 564.01 gal/min |
| Kv value [m3/h] µ150 plain | 124.2 m3/h |
| Kv value [m3/h] µ250 plain | 128.1 m3/h |
| Kv value [m3/h] µ500 plain | 134.6 m3/h |
| Max. Working Pressure [bar] | 52 bar |
| Outlet connection size [in] | 4 in |
| Outlet connection size [mm] | 100 mm |
| Quantity per packing format | 1 pc |
| Cv value [gal/min] 100 plain | 546.84 gal/min |
| Max. Working Pressure [psig] | 754 psig |
| Cv value [gal/min] 38 pleated | 774.9 gal/min |
| Cv value [gal/min] 72 pleated | 737.48 gal/min |
| Kv value [m3/h] µ150 pleated | 162.4 m3/h |
| Kv value [m3/h] µ250 pleated | 167.5 m3/h |
| Kv value [m3/h] µ500 pleated | 176 m3/h |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -76 °F |
| Cv value [gal/min] 100 pleated | 715.03 gal/min |
Product Description
FIA 100 D STR FILTER HOUSING PS52
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
