148B6004

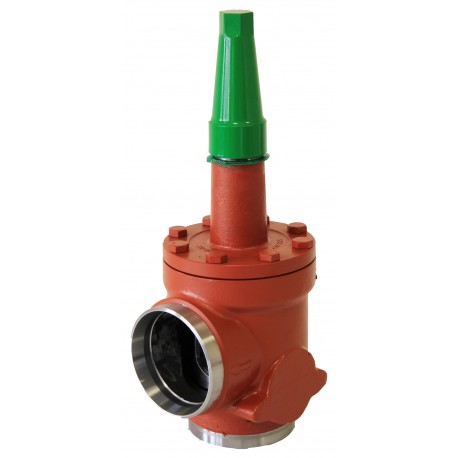

148B6004 DANFOSS REFRIGERATION Check & stop valve, SCA-X 100
$0.00USD
3568 in stock
Key Specifications
EAN ():5702428479011
Type ():SCA-X 100
Brand ():SVL Flexline
Volume ():47.73 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428479011 |
| Type () | SCA-X 100 |
| Brand () | SVL Flexline |
| Volume () | 47.73 Liter |
| Approval () | CELLC CDC EURO-TYSKUKCA |
| Direction () | Angleway |
| Equipment () | Cap |
| Net weight () | 17 Kg |
| Fluid Group () | 12 |
| Serviceable () | SVL Flexline spare parts |
| Colour Paint () | Reddish brown |
| Gross weight () | 20.516 Kg |
| MinODP [bar] () | 0.04 bar |
| MinODP [psi] () | 0.62 psi |
| PED category () | II |
| Refrigerants () | R134aR22R290R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R600R600aR717R744R507AR1234yfR1234ze(E)R125R152aR227eaR236faR245faR32R407HR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR512AR513AR513BR515AR515BR516AR170R452C |
| Product group () | Check valves |
| Valve version () | Standard version |
| Packing format () | Single pack |
| Kv value [m³/h] () | 196 m³/h |
| Cv value [gal/min] () | 223.88 gal/min |
| EU RoHS compliance () | No - out of scope |
| Parts Program name () | SCA-X |
| Connection material () | Steel |
| Connection standard () | ASME B 36.10M SCHEDULE 40 |
| Product accessories () | SVL Flexline accessories |
| Product description () | Stop Check Valve |
| Inlet connection type () | Butt weld |
| Outlet connection type () | Butt weld |
| Flow direction indicator () | Embossed 1-way arrow |
| Product Name Description () | Check and Stop valve |
| Inlet connection size [in] () | 4 in |
| Inlet connection size [mm] () | 100 mm |
| Max. Working Pressure [bar] () | 52 bar |
| Outlet connection size [in] () | 4 in |
| Outlet connection size [mm] () | 100 mm |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 754 psig |
| Temperature range [°C] [max] () | 150 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | 302 °F |
| Temperature range [°F] [min] () | -76 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Check and Stop valve, SCA-X 100, Max. Working Pressure [bar]: 52.0, Direction: Angleway, Connection standard: ASME B 36.10M SCHEDULE 40
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Butt weld
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
